HV-S20SFH9-45S20
SFS CAT 45° SFH 9 - 45°

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	Flange head (CAT) high pressure series
  Flange size D2:	1.1/4"

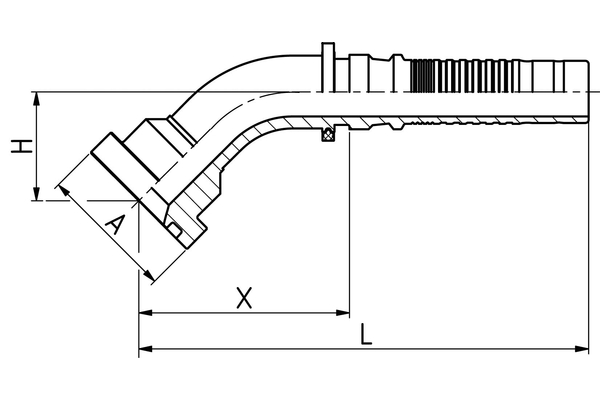

  X [mm]:	105,5
  L1 [mm]:	183,5
  H [mm]:	46,5
  D2 [mm]:	54,0
  Connection name Indunorm:	SFH 9 - 45°
  Connection type:	SFS CAT 45°
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
