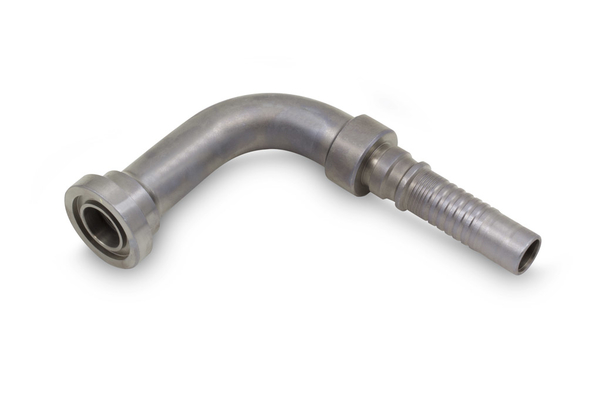

SFS CAT 90° (HV)

Similar image
Similar image

Flange head (CAT) high pressure series

To accessories

Detail

Art. No.
HV-S12SFH9-90S12
%
SALE
HV-S16SFH9-90S12
%
SALE
HV-S12SFH9-90S16
%
SALE
HV-S16SFH9-90S16
%
SALE
HV-S20SFH9-90S16
%
SALE
HV-S16SFH9-90S20
%
SALE
HV-S20SFH9-90S20
%
SALE
HV-S24SFH9-90S20
%
SALE
DN
19
19
25
25
25
31
31
31
Size
12
12
16
16
16
20
20
20
Inch
3/4
3/4
1
1
1
1.1/4
1.1/4
1.1/4
Thread + standard
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange size D2
3/4"
1"
3/4"
1"
1.1/4"
1"
1.1/4"
1.1/2"

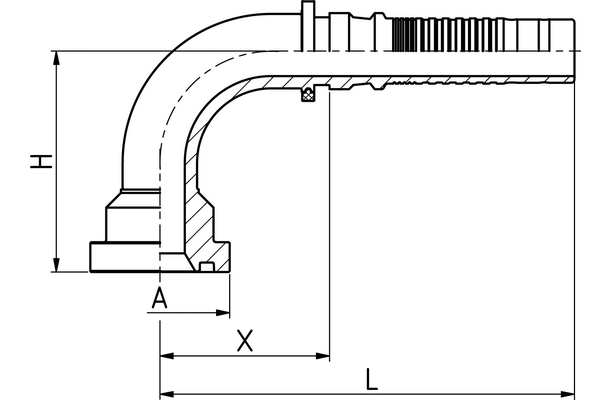

X [mm]
71,0
71,5
70,0
82,5
85,5
92,5
91,5
93,0
L1 [mm]
143,5
144,0
162,0
162,0
165,0
170,5
169,5
171,0
H [mm]
68,5
71,0
83,5
82,0
83,5
95,5
96,0
96,0
D2 [mm]
41,3
47,6
41,3
47,6
54,0
47,6
54,0
63,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: SFH 9 - 90°
    Connection type: SFS CAT 90°
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Multispiral series HV
