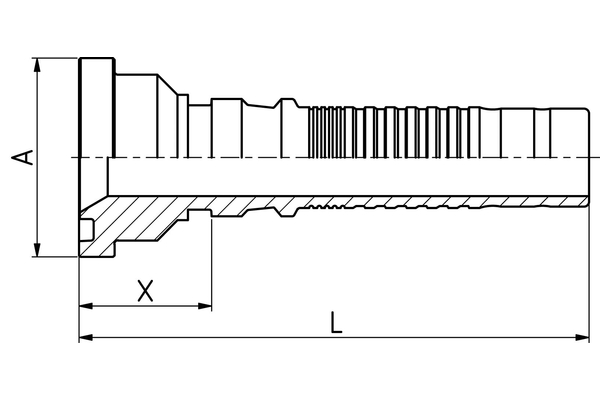

HV24SFH9-20
SFS CAT SFH 9

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	Flange head (CAT) high pressure series
  Flange size D2:	1.1/2"
  X [mm]:	75,5
  L1 [mm]:	153,5
  D2 [mm]:	63,5
  Connection name Indunorm:	SFH 9
  Connection type:	SFS CAT
  Construction form:	0°
  Material:	Free cutting steel
  Type of fittings:	Multispiral series HV
