Product info
-
Technical data

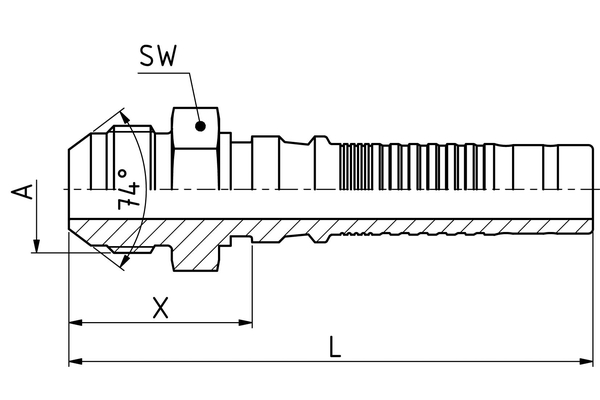

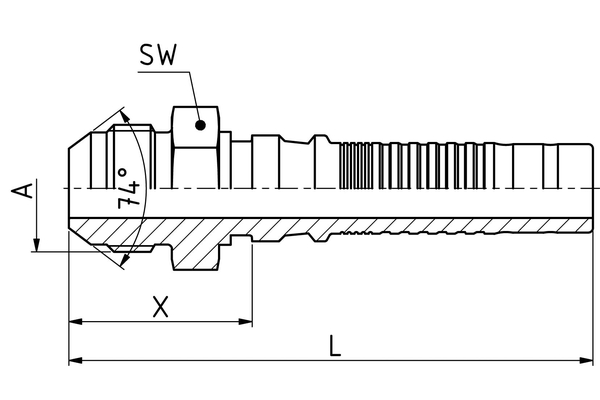

DN: 25 Size: 16 Inch: 1 Thread + standard: JIC threaded adapter, 74 ° cone with UN / UNF thread Connection thread A: 1.5/16"-12 UN X [mm]: 42,0 L1 [mm]: 121,5 SW1 [mm]: 36 Connection name Indunorm: JM Connection type: AGJ Construction form: 0° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: ZnNi Type of fittings: Multispiral series HV
