HV26JM20
AGJ JM

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	JIC threaded adapter, 74 ° cone with UN / UNF thread
  Connection thread A:	1.5/8"-12 UN

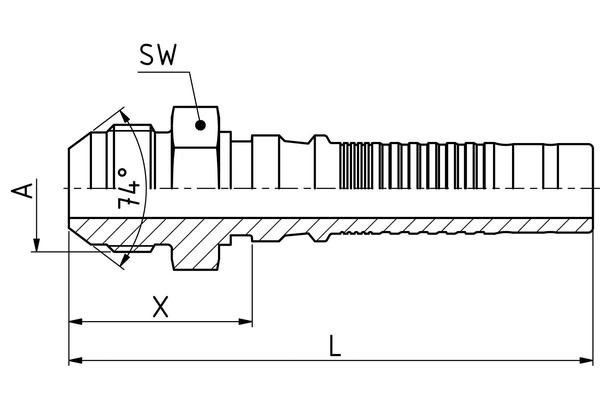

  X [mm]:	46,5
  L1 [mm]:	124,5
  SW1 [mm]:	46
  Connection name Indunorm:	JM
  Connection type:	AGJ
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
