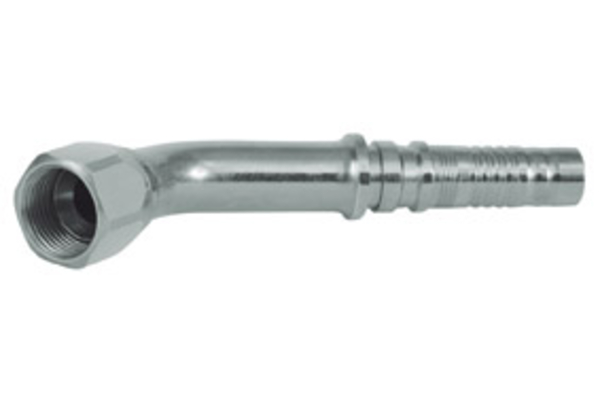

DKJ 45° (HV)

Similar image
Similar image

JIC threaded adapter, 74 ° cone with UN / UNF thread

To accessories

Detail

Art. No.
HV-S17J45S12
%
SALE
HV-S21J45S16
%
SALE
HV-S26J45S20
%
SALE
DN
19
25
31
Size
12
16
20
Inch
3/4
1
1.1/4
Thread + standard
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
Connection thread A
1.1/16"-12 UN
1.5/16"-12 UN
1.5/8"-12 UN

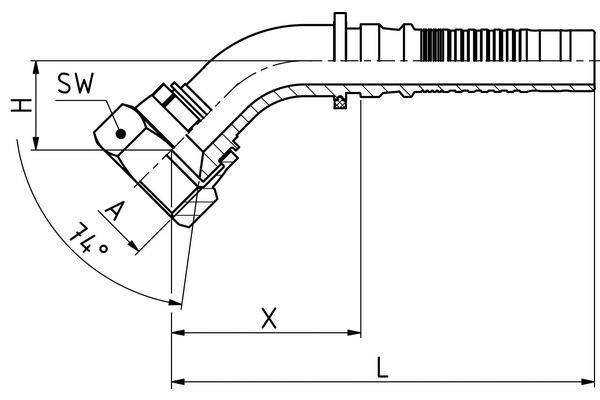

X [mm]
73,5
75,2
102,0
L1 [mm]
141,0
155,0
163,8
H [mm]
31,0
31,5
38,5
SW1 [mm]
32
41
50
L1 [mm]
163,8
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: JF 45°
    Connection type: DKJ 45°
    Construction form: 45°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: ZnNi
    Type of fittings: Multispiral series HV
