DKJ 90° (HV)

Similar image
Similar image

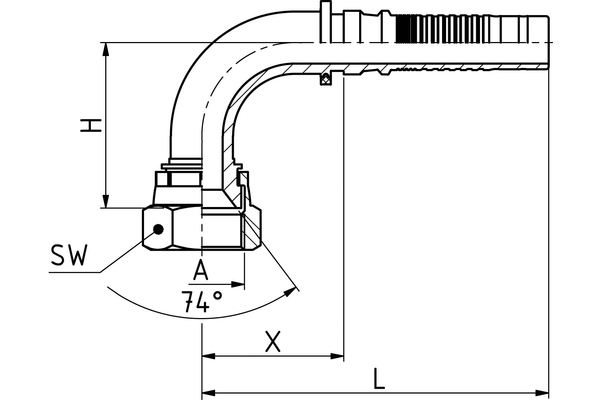

JIC threaded adapter, 74 ° cone with UN / UNF thread

To accessories

Detail

Art. No.
HV-S17J90S12
%
SALE
HV-S21J90S16
%
SALE
HV-S26J90S20
%
SALE
DN
19
25
31
Size
12
16
20
Inch
3/4
1
1.1/4
Thread + standard
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
Connection thread A
1.1/16"-12 UN
1.5/16"-12 UN
1.5/8"-12 UN
X [mm]
57,5
68,5
85,8
L1 [mm]
125,0
148,0
163,8
H [mm]
58,5
73,0
38,0
SW1 [mm]
32
41
50
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: JF 90°
    Connection type: DKJ 90°
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: ZnNi
    Type of fittings: Multispiral series HV
