PV12BOF12
DKOR BOF

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	BSP female, 60° cone with o-ring
  Connection thread A:	G 3/4"

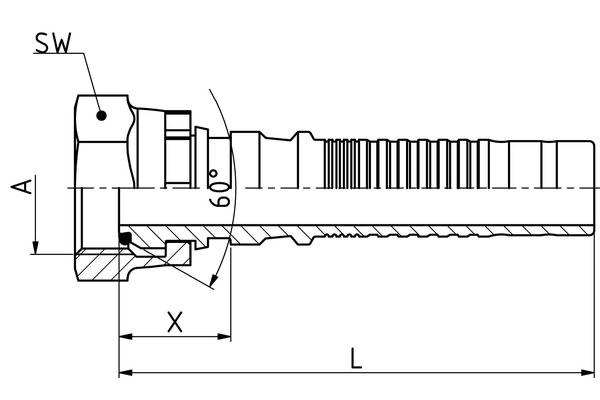

  X [mm]:	29,0
  L1 [mm]:	101,5
  Outer diameter O-ring [mm]:	17,1
  Height O-ring [mm]:	1,6
  SW1 [mm]:	32
  Type of nut:	CR
  Connection name Indunorm:	BOF
  Connection type:	DKOR
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Heavy duty series PV
