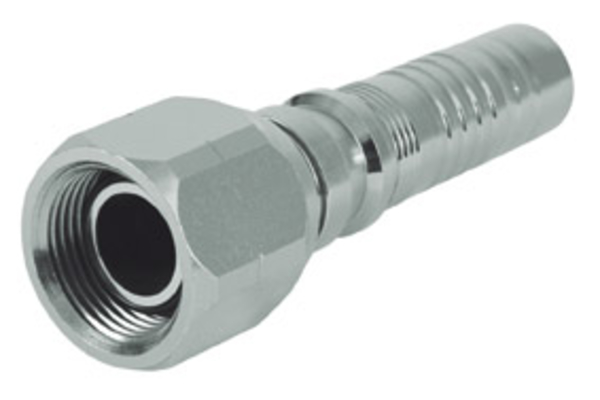

PV16BOF16
DKOR BOF

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	BSP female, 60° cone with o-ring
  Connection thread A:	G 1"

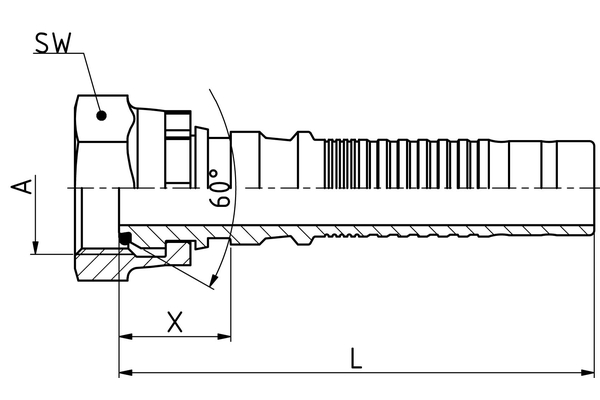

  X [mm]:	30,5
  L1 [mm]:	110,0
  Outer diameter O-ring [mm]:	22,1
  Height O-ring [mm]:	1,6
  SW1 [mm]:	41
  Type of nut:	CR
  Connection name Indunorm:	BOF
  Connection type:	DKOR
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Heavy duty series PV
