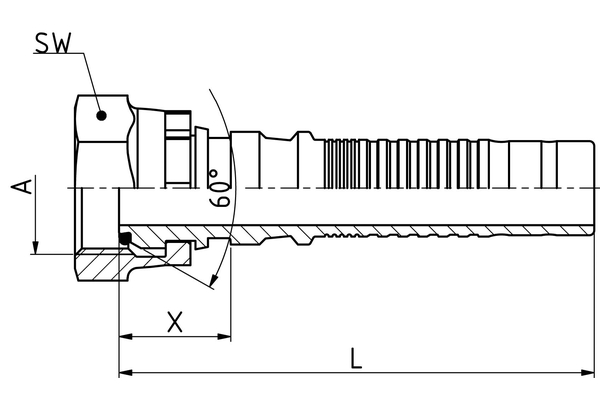

PV20BOF20
DKOR BOF

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	BSP female, 60° cone with o-ring
  Connection thread A:	G 1.1/4"
  X [mm]:	36,0
  L1 [mm]:	114,0
  Outer diameter O-ring [mm]:	29,1
  Height O-ring [mm]:	1,6
  SW1 [mm]:	50
  Type of nut:	CR
  Connection name Indunorm:	BOF
  Connection type:	DKOR
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Heavy duty series PV
