PV36MSOF25-12
DKOS MSOF

Product info

• Specifications

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Especially for harsh applications, in combination with HV-swage ferrules

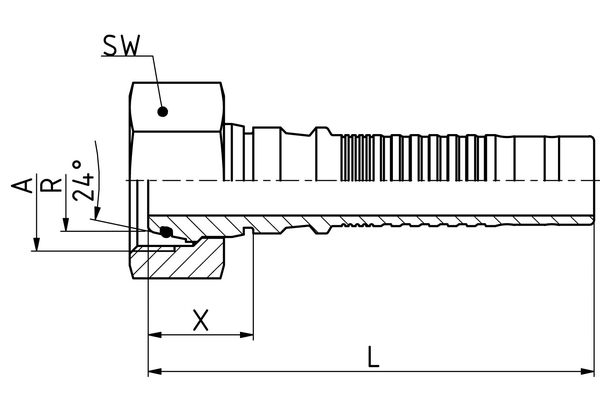

  Connection thread A:	M36x2
  X [mm]:	31,5
  L1 [mm]:	104,0
  Outer diameter O-ring [mm]:	22
  Height O-ring [mm]:	2,5
  SW1 [mm]:	46
  Type of nut:	Union nut
  Connection name Indunorm:	MSOF
  Connection type:	DKOS
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Heavy duty series PV
