PV52MSOF38-20
DKOS MSOF

Product info

• Specifications

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	Especially for harsh applications, in combination with HV-swage ferrules

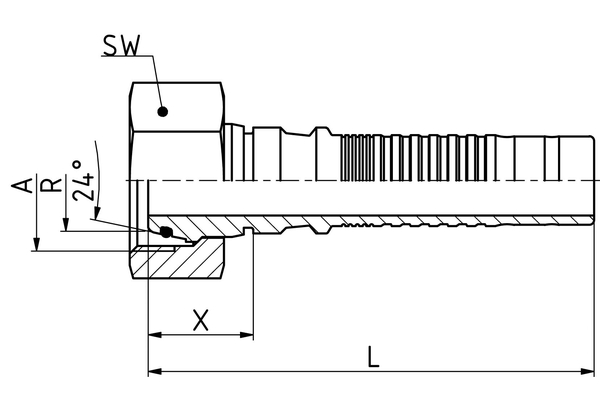

  Connection thread A:	M52x2
  X [mm]:	36,0
  L1 [mm]:	114,0
  Outer diameter O-ring [mm]:	33
  Height O-ring [mm]:	2,5
  SW1 [mm]:	60
  Type of nut:	Union nut
  Connection name Indunorm:	MSOF
  Connection type:	DKOS
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Heavy duty series PV
