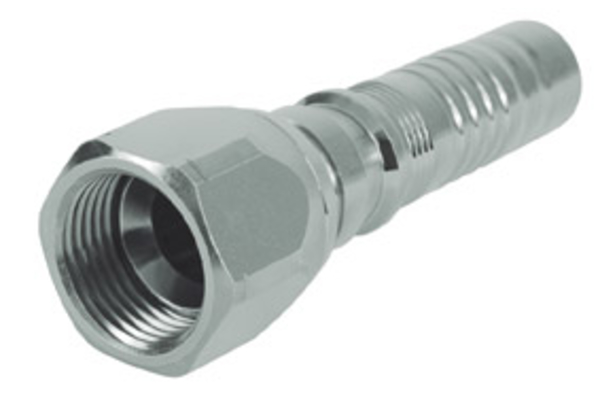

PV17JF12
DKJ JF

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Especially for harsh applications, in combination with HV-swage ferrules
  Connection thread A:	1.1/16"-12 UN

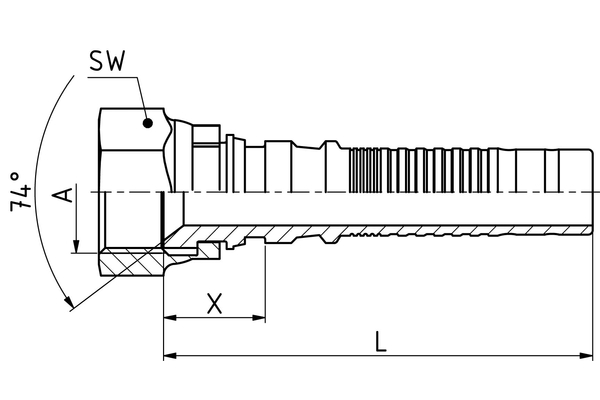

  X [mm]:	24,0
  L1 [mm]:	96,5
  SW1 [mm]:	32
  Type of nut:	CR
  Connection name Indunorm:	JF
  Connection type:	DKJ
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Heavy duty series PV
