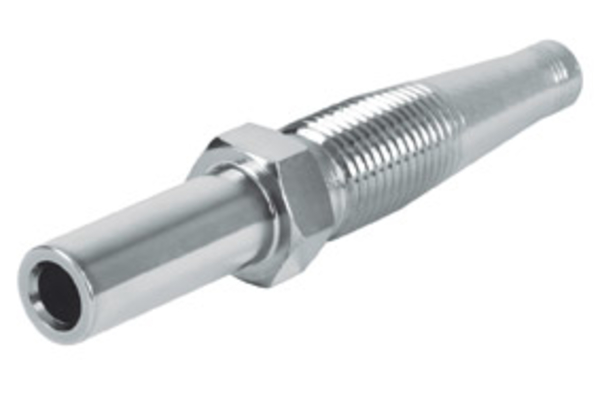

BEL/RSL - Pipe socket (R)

Similar image
Similar image

Pipe socket according to DIN 2353 for cutting ring and union nut, light series

To accessories

Detail

Art. No.
R06MOSE04
%
SALE
R08MOSE04
%
SALE
R10MOSE05
%
SALE
R12MOSE06
%
SALE
R15MOSE08
%
SALE
R18MOSE10
%
SALE
R22MOSE12
%
SALE
R28MOSE16
%
SALE
DN
06
06
08
10
12
16
19
25
Size
04
04
05
06
08
10
12
16
Inch
1/4
1/4
5/16
3/8
1/2
5/8
3/4
1
Thread + standard
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series

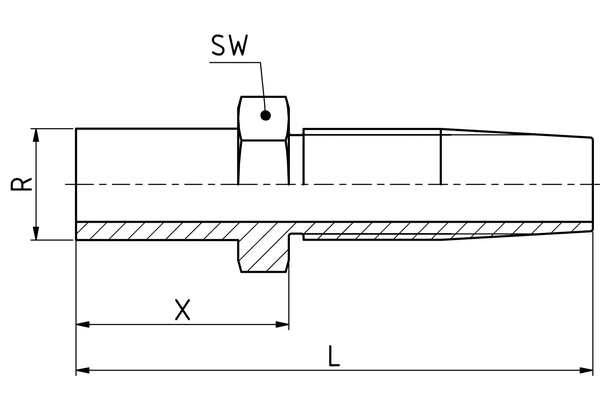

Pipe Ø R [mm]
6
8
10
12
15
18
22
28
X [mm]
29,9
31,9
33,9
35,2
34,0
35,0
39,5
41,4
L1 [mm]
69,6
71,6
73,6
80,9
81,7
85,8
99,8
112,9
SW1 [mm]
13
13
14
17
17
22
24
32
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MOSE
    Connection type: BEL RSL
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: zinc plated, chrom 6-free
    Type of fittings: Reusable series R

Practical tip

The cutting ring final assembly should take place in the hardened pre-assembly socket RV..VM-L/S.
