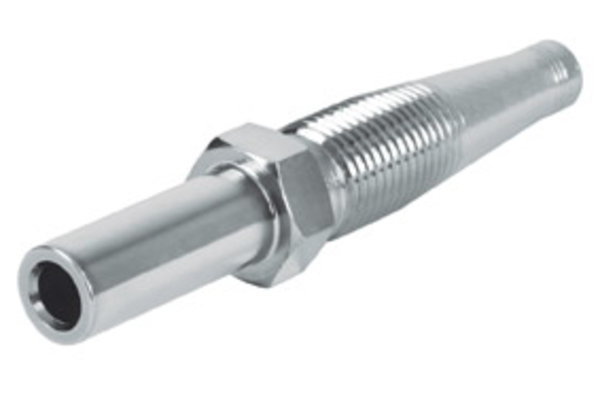

R28MOSE16
BEL MOSE

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut, light series

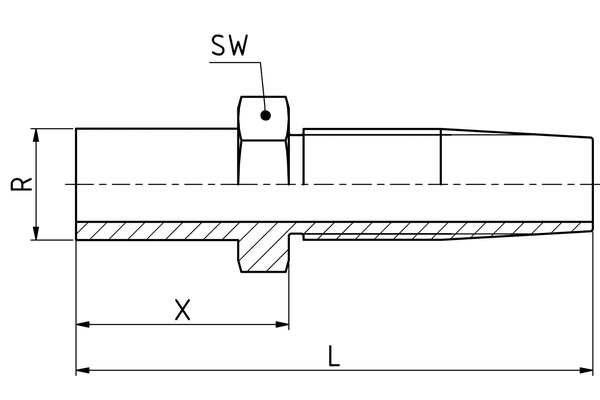

  Pipe Ø R [mm]:	28
  X [mm]:	41,4
  L1 [mm]:	112,9
  SW1 [mm]:	32
  Connection name Indunorm:	MOSE
  Connection type:	BEL RSL
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Reusable series R
