DKL (Tecalan)

Similar image
Similar image

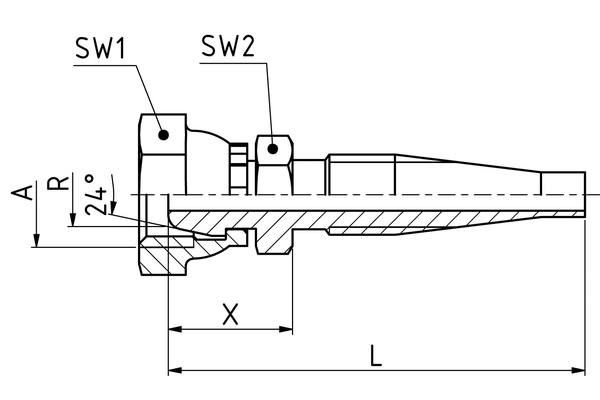

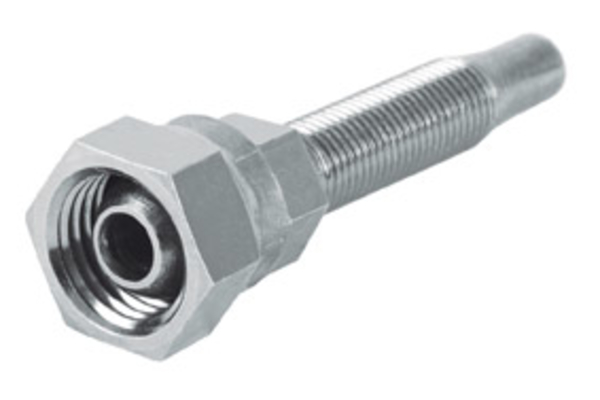

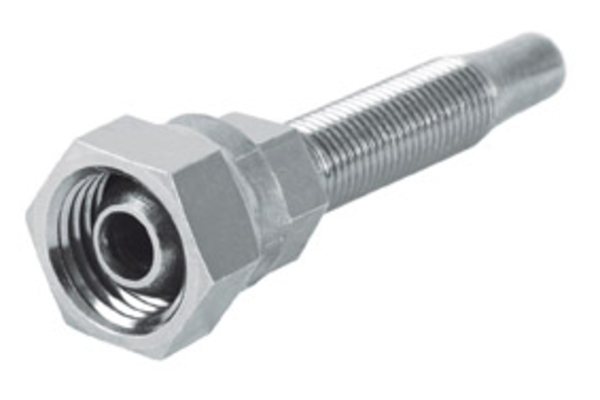

Sealing cone with union nut, light series

To accessories

Detail

Art. No.
R12MSF06-02-T
%
SALE
R14MSF08-04-T
%
SALE
DN
04
06
Size
02
04
Inch
1/4
Thread + standard
Sealing cone with union nut light series
Sealing cone with union nut light series
Connection thread A
M12X1,5
M14x1,5
Pipe Ø R [mm]
6
8
X [mm]
25,0
27,0
L1 [mm]
42,5
58,5
SW1 [mm]
10
12
SW2 [mm]
17
17
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSF
    Connection type: DKL
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanized
    Type of fittings: Tecalan® reusable series

Benefit

As metal-sealing, suitable for high temperatures and aggressive media
