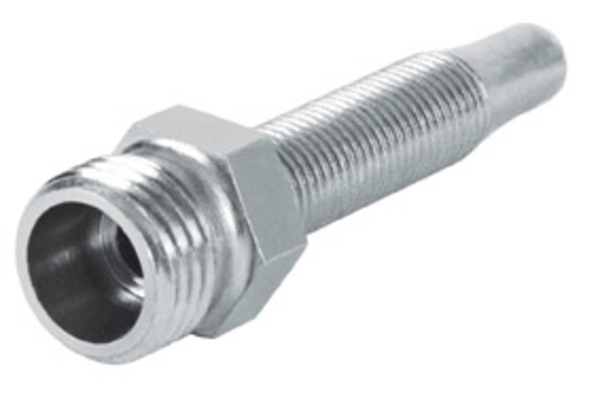

R16ME10-05-T
CEL ME

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16

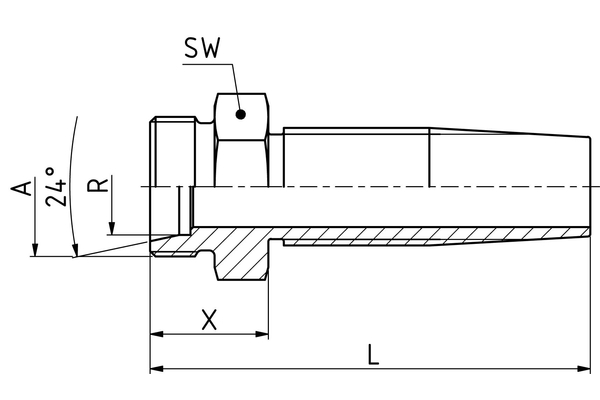

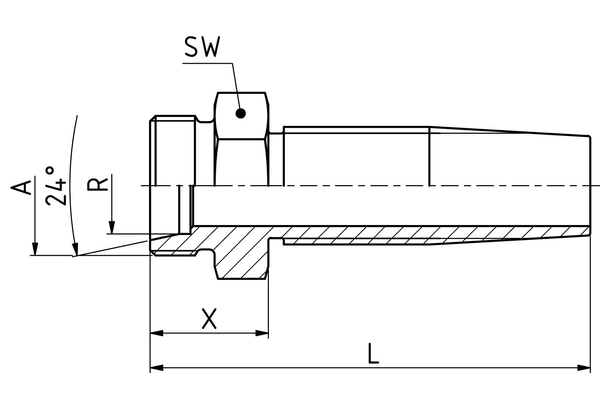

  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, light series
  Connection thread A:	M16x1,5
  Pipe Ø R [mm]:	10
  X [mm]:	27,0
  L1 [mm]:	59,0
  SW1 [mm]:	17
  Connection name Indunorm:	ME
  Connection type:	CEL
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Tecalan® reusable series
