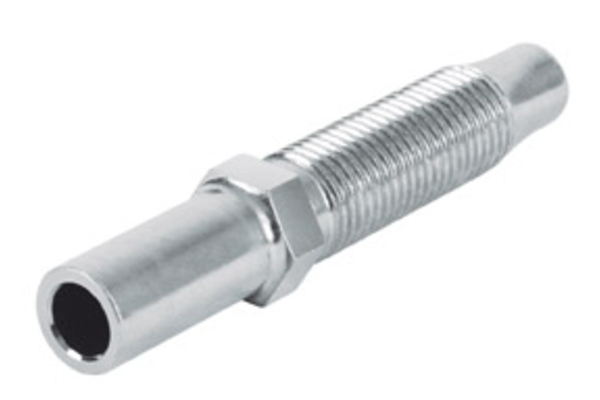

BEL/RSL - Pipe socket (Tecalan)

Similar image
Similar image

Pipe socket according to DIN 2353 for cutting ring and union nut, light series

To accessories

Detail

Art. No.
R06MOSE02-T
%
SALE
R06MOSE90S02-T
%
SALE
R08MOSE04-T
%
SALE
R12MOSE06-T
%
SALE
DN
04
04
06
10
Size
02
02
04
06
Inch
1/8
1/8
1/4
3/8
Thread + standard
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series

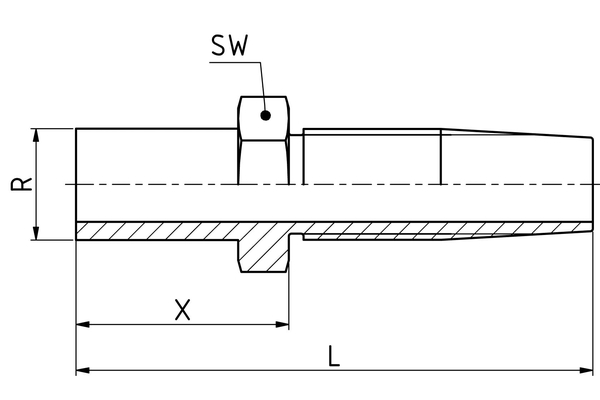

Pipe Ø R [mm]
6
6
8
12
X [mm]
25,5
14,0
37,0
44,0
L1 [mm]
49,5
45,0
67,5
79,5
SW1 [mm]
10
10
11
14
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MOSE
    Connection type: BEL RSL
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanized
    Type of fittings: Tecalan® reusable series

Practical tip

The cutting ring final assembly should take place in the hardened pre-assembly socket RV..VM-L/S.
