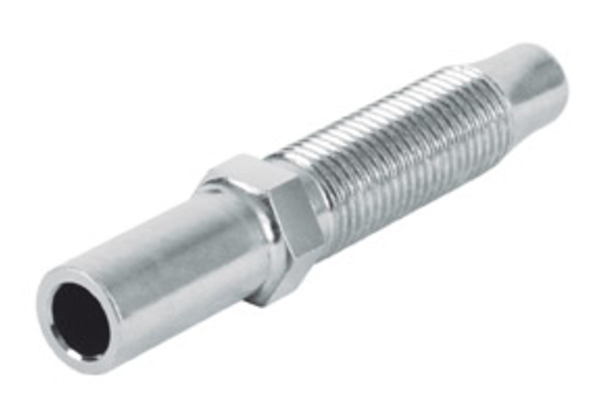

R08MOSE02-T
BES MOSE

Product info

• Technical data

  DN:	04
  Size:	02
  Inch:	1/8
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

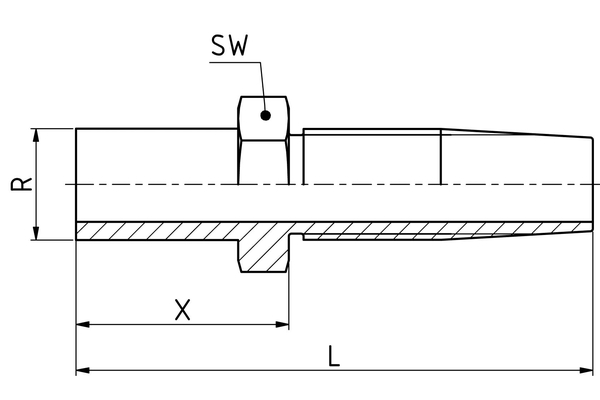

  Pipe Ø R [mm]:	8
  X [mm]:	35,0
  L1 [mm]:	51,5
  SW1 [mm]:	10
  Connection name Indunorm:	MOSE
  Connection type:	BES RSS
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanized
  Type of fittings:	Tecalan® reusable series
