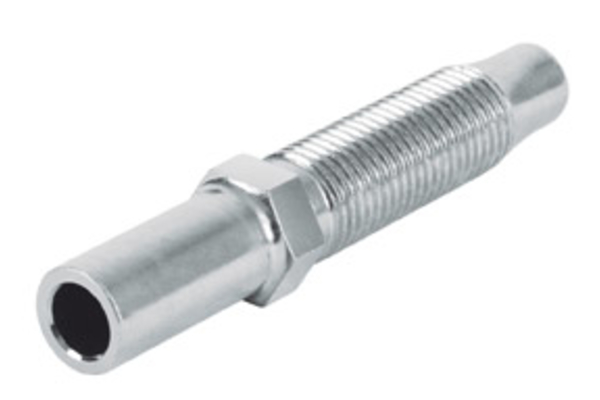

BES/RSS - Pipe socket (Tecalan)

Similar image
Similar image

Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

To accessories

Detail

Art. No.
R08MOSE02-T
%
SALE
R10MOSE04-T
%
SALE
R12MOSE05-T
%
SALE
DN
04
06
08
Size
02
04
05
Inch
1/8
1/4
5/16
Thread + standard
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

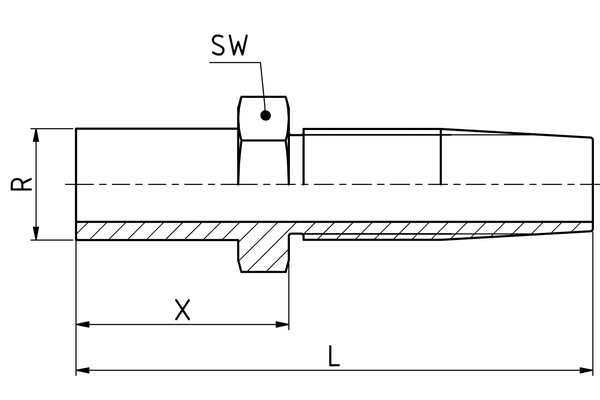

Pipe Ø R [mm]
8
10
12
X [mm]
35,0
39,0
43,0
L1 [mm]
51,5
69,5
72,0
SW1 [mm]
10
12
14
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MOSE
    Connection type: BES RSS
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanized
    Type of fittings: Tecalan® reusable series

Practical tip

The cutting ring final assembly should take place in the hardened pre-assembly socket RV..VM-L/S.
