XV04FFM04
AGR flat sealing FFM

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	BSP threaded adapter with male thread, flat sealing
  Connection thread A:	G 1/4"

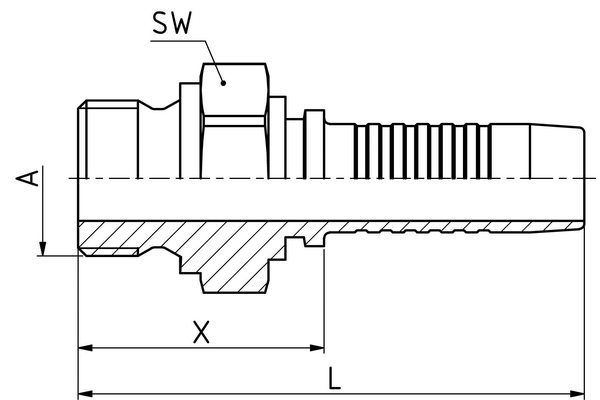

  X [mm]:	19,5
  L1 [mm]:	54,5
  SW1 [mm]:	19
  Connection name Indunorm:	FFM FLATFACE
  Connection type:	AGR FLATFACE
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
