AGR flatface

Similar image
Similar image

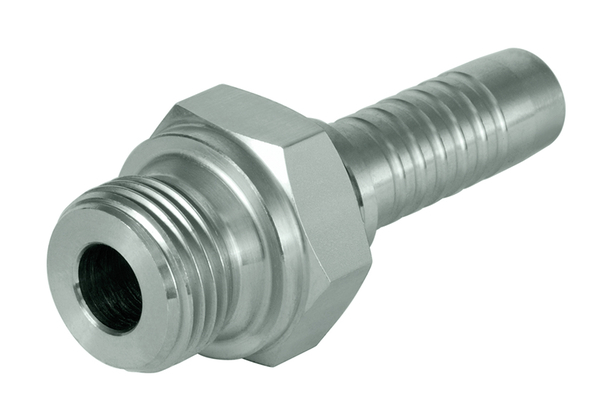

BSP threaded adapter with male thread, flat sealing

To accessories

Detail

Art. No.
XV04FFM04
%
SALE
XV04FFM06
%
SALE
XV06FFM06
%
SALE
XV08FFM06
%
SALE
XV06FFM08
%
SALE
XV08FFM08
%
SALE
XV12FFM08
%
SALE
XV12FFM10
%
SALE
XV12FFM12
%
SALE
XV16FFM12
%
SALE
XV16FFM16
%
SALE
XV20FFM16
%
SALE
XV20FFM20
%
SALE
DN
06
10
10
10
12
12
12
16
19
19
25
25
31
Size
04
06
06
06
08
08
08
10
12
12
16
16
20
Inch
1/4
3/8
3/8
3/8
1/2
1/2
1/2
5/8
3/4
3/4
1
1
1.1/4
Thread + standard
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing
BSP threaded adapter with male thread, flat sealing

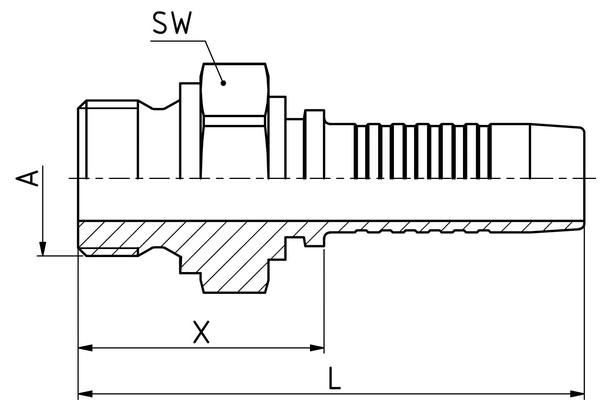

Connection thread A
G 1/4"
G 1/4"
G 3/8"
G 1/2"
G 3/8"
G 1/2"
G 3/4"
G 3/4"
G 3/4"
G 1"
G 1"
G 1.1/4"
G 1.1/4"
X [mm]
19,5
20,0
23,3
25,9
22,7
25,3
30,6
30,6
30,7
36,5
37,8
40,2
48,2
L1 [mm]
54,5
58,3
61,6
64,2
63,7
66,3
71,6
74,6
82,7
88,5
99,8
102,2
108,2
SW1 [mm]
19
19
22
22
22
27
32
32
32
41
41
50
50
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: FFM FLATFACE
    Connection type: AGR FLATFACE
    Construction form: 0°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: Cr3
    Type of fittings: Universal series XV
