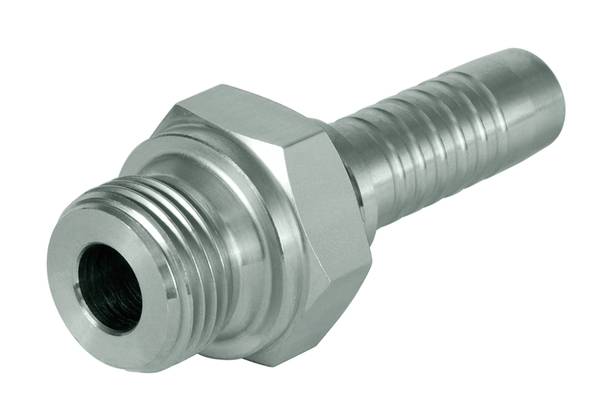

XV20FFM20
AGR flat sealing FFM

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	BSP threaded adapter with male thread, flat sealing
  Connection thread A:	G 1.1/4"

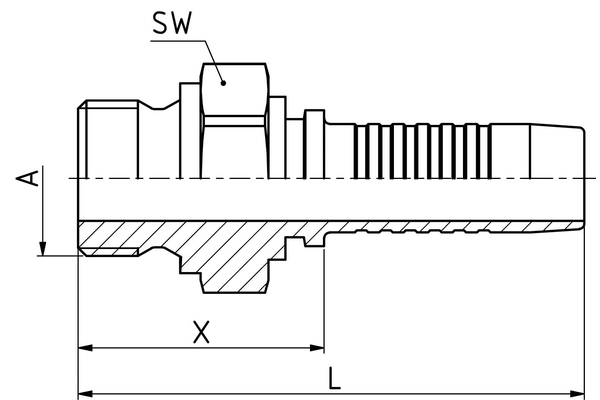

  X [mm]:	48,2
  L1 [mm]:	108,2
  SW1 [mm]:	50
  Connection name Indunorm:	FFM FLATFACE
  Connection type:	AGR FLATFACE
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
