DKR flatface 90°

Similar image
Similar image

BSP union nut, flat sealing

To accessories

Detail

Art. No.
XV04FF90S04
%
SALE
XV06FF90S06
%
SALE
XV08FF90S08
%
SALE
XV12FF90S08
%
SALE
XV12FF90S10
%
SALE
XV12FF90S12
%
SALE
XV16FF90S16
%
SALE
XV20FF90S20
%
SALE
DN
06
10
12
12
16
19
25
31
Size
04
06
08
08
10
12
16
20
Inch
1/4
3/8
1/2
1/2
5/8
3/4
1
1.1/4
Thread + standard
BSP union nut, flat sealing
BSP union nut, flat sealing
BSP union nut, flat sealing
BSP union nut, flat sealing
BSP union nut, flat sealing
BSP union nut, flat sealing
BSP union nut, flat sealing
BSP union nut, flat sealing

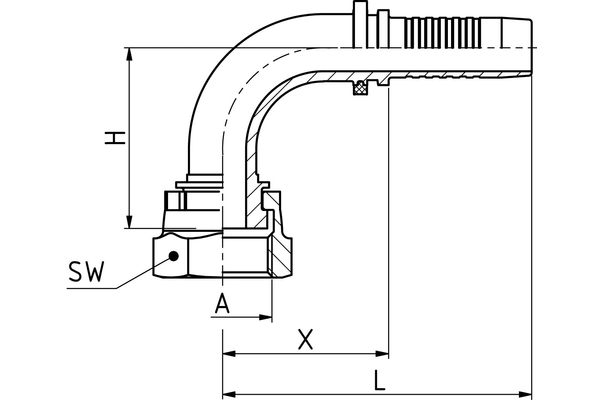

Connection thread A
G 1/4"
G 3/8"
G 1/2"
G 3/4"
G 3/4"
G 3/4"
G 1"
G 1.1/4"
X [mm]
32,8
42,5
48,0
48,0
45,0
60,6
61,4
76,3
L1 [mm]
63,0
74,0
83,5
83,5
83,5
106,6
116,6
136,3
H [mm]
35,2
36,5
41,0
41,0
51,1
54,0
70,3
79,9
SW1 [mm]
19
22
27
32
32
32
41
50
Type of nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: FF 90°
    Connection type: DKR-FF 90°
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
