XV06FF90S06
DKR-FF 90° FF 90°

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	BSP union nut, flat sealing
  Connection thread A:	G 3/8"

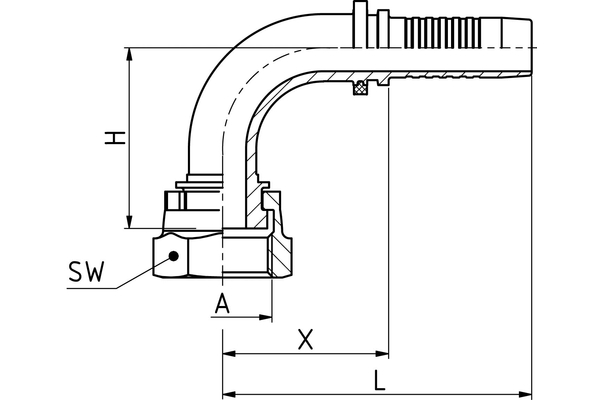

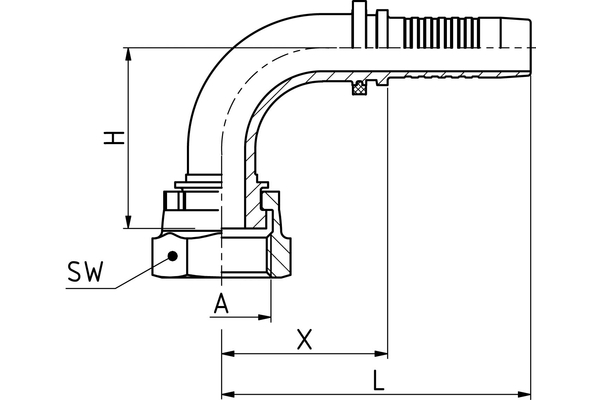

  X [mm]:	42,5
  L1 [mm]:	74,0
  H [mm]:	36,5
  SW1 [mm]:	22
  Type of nut:	union nut
  Connection name Indunorm:	FF 90°
  Connection type:	DKR-FF 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
