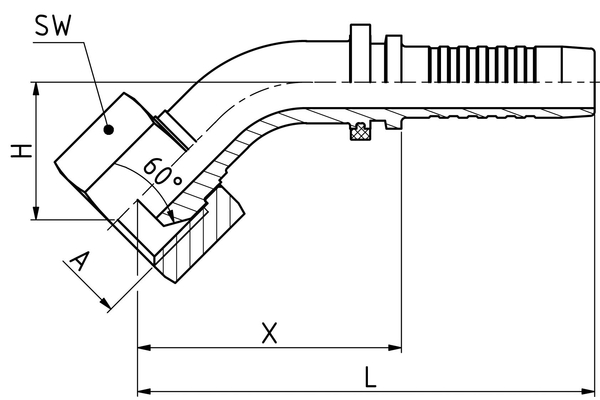

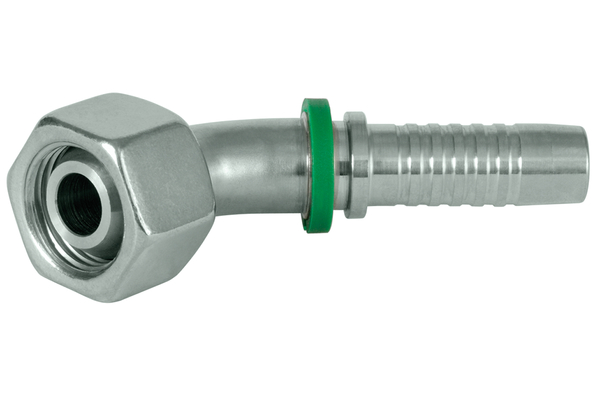

DKR 45°

BSP sealing head, 60 ° cone with union nut, BSP thread

To accessories

Detail
Product info

Detail

Art. No.

XV02B45S04

XV04B45S04

XV06B45S04

XV06B45S05

XV06B45S06

XV08B45S06

XV06B45S08

XV08B45S08

XV10B45S08

XV10B45S10

XV12B45S10

XV12B45S12

XV16B45S12

XV16B45S16

XV20B45S20

XV24B45S24

DN

06

08

10

12

16

19

25

31

38

Size

04

4

04

05

06

08

10

12

16

20

24

Inch

1/4

5/16

3/8

1/2

5/8

3/4

1

1.1/4

1.1/2

Thread + standard

BSP sealing head, 60 ° cone with union nut, BSP thread

Connection thread A

G 1/8"

G 1/4"

G 3/8"

G 1/2"

G 3/8"

G 1/2"

G 5/8"

G 3/4"

G 1"

G 1.1/4"

G 1.1/2"

X [mm]

38,0

41,0

43,0

54,0

41,0

40,7

62,0

65,0

68,0

57,5

55,7

82,0

84,0

111,0

105,2

135,0

L1 [mm]

64,5

67,5

69,5

80,5

74,5

74,0

94,5

97,5

100,5

96,0

94,0

126,3

128,3

165,3

165,0

202,0

H [mm]

13,0

16,0

18,0

19,5

19,0

22,0

25,0

28,0

25,0

26,0

28,0

31,0

43,0

55,5

SW1 [mm]

17

19

22

27

22

27

30

32

38

38,0

50

55

Type of nut

CR

union nut

CR

ST

Quantity

Standard nominal sizes in bold

Product info

Technical data

Connection name Indunorm:	BF 45°
Connection type:	DKR 45°
Construction form:	45°
Material:	Free cutting steel
Resistance against red rust [h]:	144
Resistance against white rust [h]:	72
Surface:	galvanised and Cr III passivated
Type of fittings:	Universal series XV
