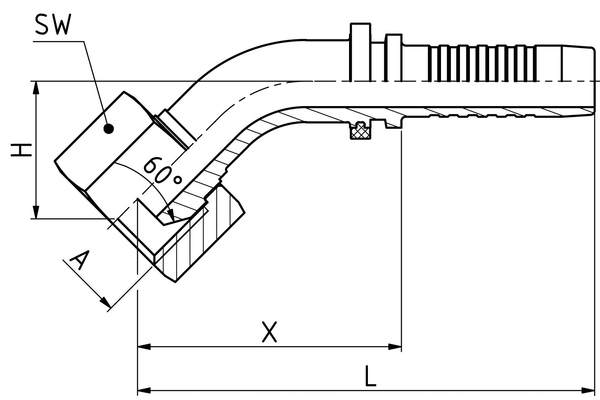

XV10B45S10
DKR 45° BF 45°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G 5/8"

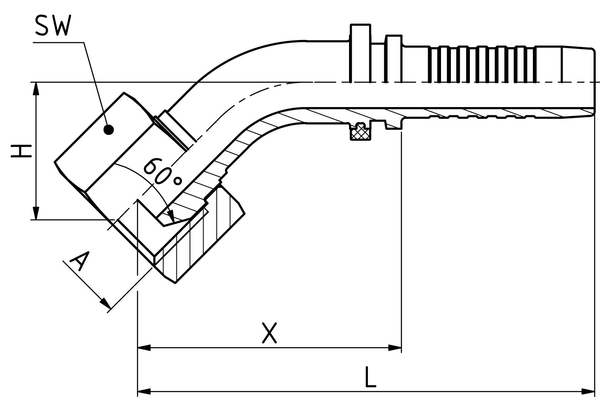

  X [mm]:	57,5
  L1 [mm]:	96,0
  H [mm]:	28,0
  SW1 [mm]:	30
  Type of nut:	union nut
  Connection name Indunorm:	BF 45°
  Connection type:	DKR 45°
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
