XV18MSF12-45S06
DKL 45° MSF 45°

Product info

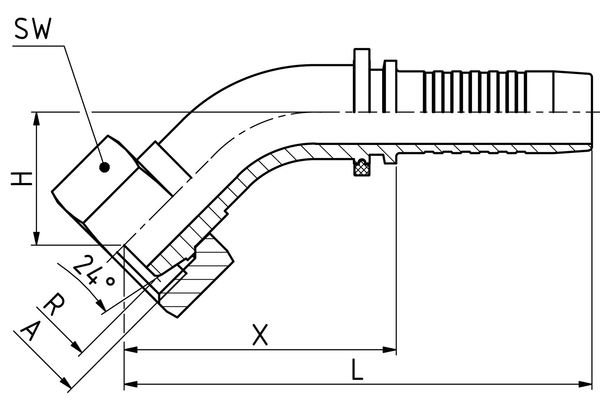

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Sealing cone with union nut light series
  Connection thread A:	M18x1,5
  Pipe Ø R [mm]:	12
  X [mm]:	40,7
  L1 [mm]:	74,0
  H [mm]:	17,5
  SW1 [mm]:	22
  Type of nut:	-
  Connection name Indunorm:	MSF 45°
  Connection type:	DKL 45°
  Construction form:	45°
  Material:	Free cutting steel
  Type of fittings:	Universal series XV
