DKL 45°

Similar image
Similar image

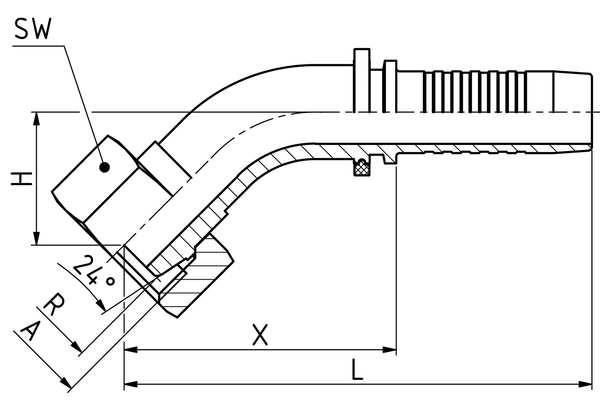

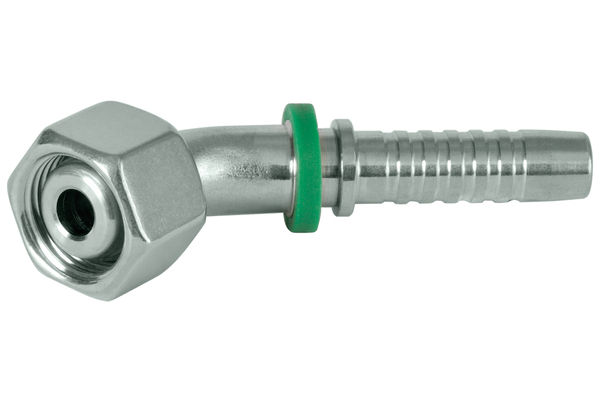

Sealing cone with union nut, light series

To accessories

Detail

Art. No.
XV12MSF06-45S04
%
SALE
XV18MSF12-45S06
%
SALE
XV22MSF15-45S08
%
SALE
XV30MSF22-45S12
%
SALE
XV36MSF28-45S16
%
SALE
DN
06
10
12
19
25
Size
04
06
08
12
16
Inch
1/4
3/8
1/2
3/4
1
Thread + standard
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Connection thread A
M12x1,5
M18x1,5
M22x1,5
M30x2,0
M36x2,0
Pipe Ø R [mm]
6
12
15
22
28
X [mm]
44,0
40,7
45,0
61,0
70,5
L1 [mm]
74,0
74,0
80,5
107,0
125,7
H [mm]
18,0
17,5
20,0
27,6
32,5
SW1 [mm]
17
22
27
36
41
Type of nut
-
-
Union nut
Union nut
Union nut
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSF 45°
    Connection type: DKL 45°
    Construction form: 45°
    Material: Free cutting steel
    Type of fittings: Universal series XV

Benefit

Well-suited for high temperatures and for corrosive media duet to metallic sealing.
