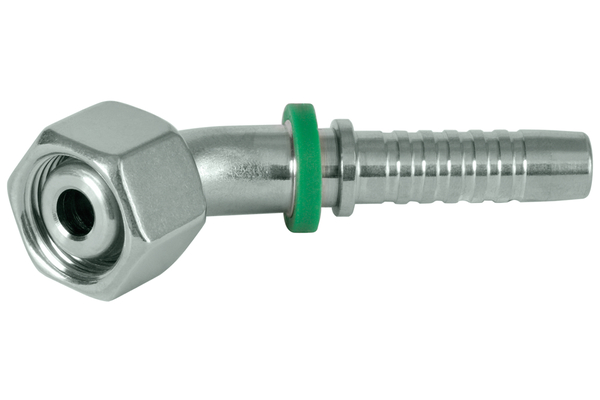

XV30MSF22-45S12
DKL 45° MSF 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Sealing cone with union nut light series

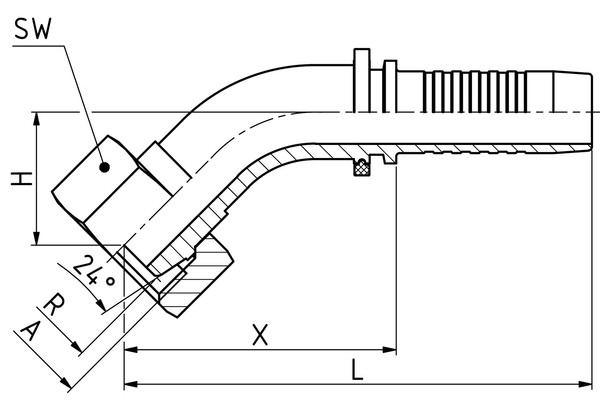

  Connection thread A:	M30x2,0
  Pipe Ø R [mm]:	22
  X [mm]:	61,0
  L1 [mm]:	107,0
  H [mm]:	27,6
  SW1 [mm]:	36
  Type of nut:	Union nut
  Connection name Indunorm:	MSF 45°
  Connection type:	DKL 45°
  Construction form:	45°
  Material:	Free cutting steel
  Type of fittings:	Universal series XV
