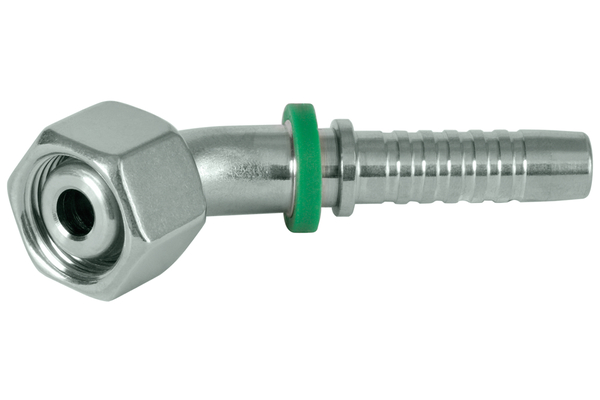

XV36MSF28-45S16
DKL 45° MSF 45°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	Sealing cone with union nut light series

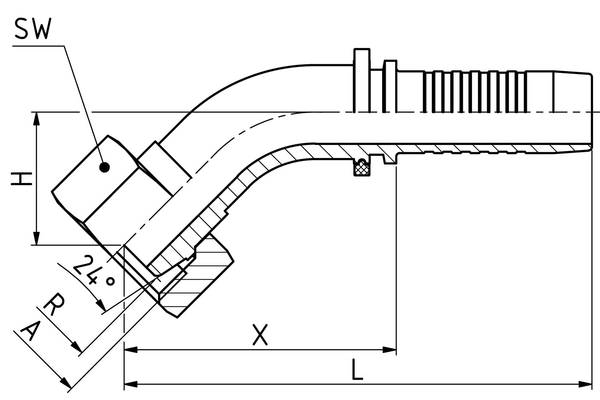

  Connection thread A:	M36x2,0
  Pipe Ø R [mm]:	28
  X [mm]:	70,5
  L1 [mm]:	125,7
  H [mm]:	32,5
  SW1 [mm]:	41
  Type of nut:	Union nut
  Connection name Indunorm:	MSF 45°
  Connection type:	DKL 45°
  Construction form:	45°
  Material:	Free cutting steel
  Type of fittings:	Universal series XV
