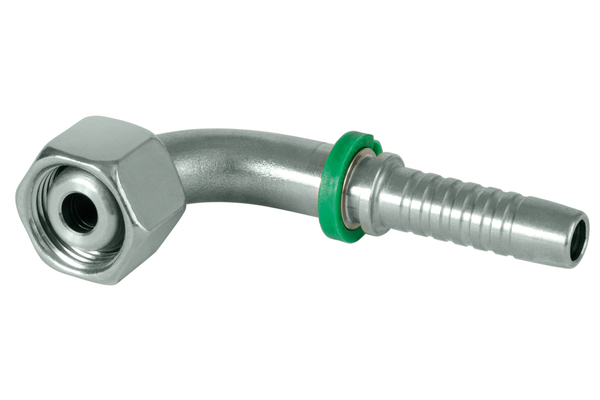

XV12MSF06-90S04
DKL 90° MSF 90°

Product info

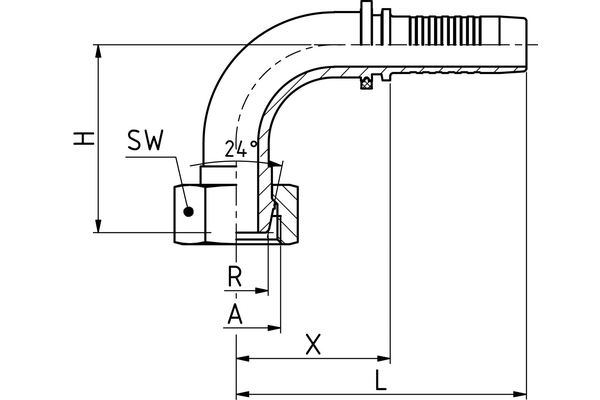

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Sealing cone with union nut light series
  Connection thread A:	M12x1,5
  Pipe Ø R [mm]:	6
  X [mm]:	25,5
  L1 [mm]:	55,5
  H [mm]:	31,5
  SW1 [mm]:	17
  Type of nut:	-
  Connection name Indunorm:	MSF 90°
  Connection type:	DKL 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
