DKL 90°

Similar image
Similar image

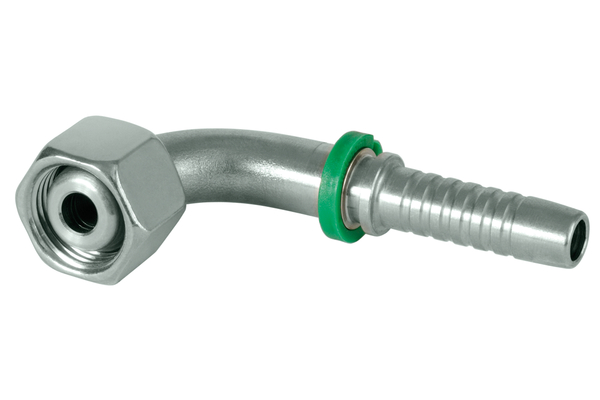

Sealing cone with union nut, light series

To accessories

Detail

Art. No.
XV12MSF06-90S04
%
SALE
XV14MSF08-90S04
%
SALE
XV16MSF10-90S05
%
SALE
XV16MSF10-90S06
%
SALE
XV18MSF12-90S06
%
SALE
XV22MSF15-90S08
%
SALE
XV26MSF18-90S10
%
SALE
XV30MSF22-90S12
%
SALE
XV36MSF28-90S16
%
SALE
DN
06
06
08
10
10
12
16
19
25
Size
04
04
05
06
06
08
10
12
16
Inch
1/4
1/4
5/16
3/8
3/8
1/2
5/8
3/4
1
Thread + standard
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Connection thread A
M12x1,5
M14x1,5
M16x1,5
M16x1,5
M18x1,5
M22x1,5
M26x1,5
M30x2,0
M36x2,0
Pipe Ø R [mm]
6
8
10
10
12
15
18
22
28

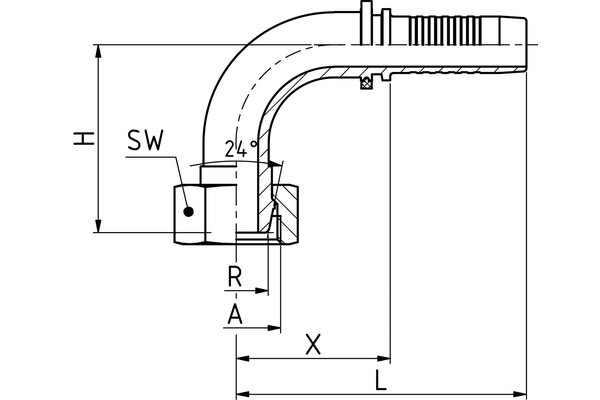

X [mm]
25,5
29,0
31,0
36,0
36,7
41,2
45,7
52,8
67,8
L1 [mm]
55,5
59,0
61,0
69,5
70,0
76,5
84,0
98,8
123,0
H [mm]
31,5
29,0
31,5
30,0
36,0
41,0
49,0
58,9
69,4
SW1 [mm]
17
17
19
19
22
27
32
36
41
Type of nut
-
-
-
-
-
Union nut
Union nut
Union nut
Union nut
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSF 90°
    Connection type: DKL 90°
    Construction form: 90°
    Material: Free cutting steel
    Surface: Cr3
    Type of fittings: Universal series XV

Benefit

Well-suited for high temperatures and for corrosive media duet to metallic sealing.
