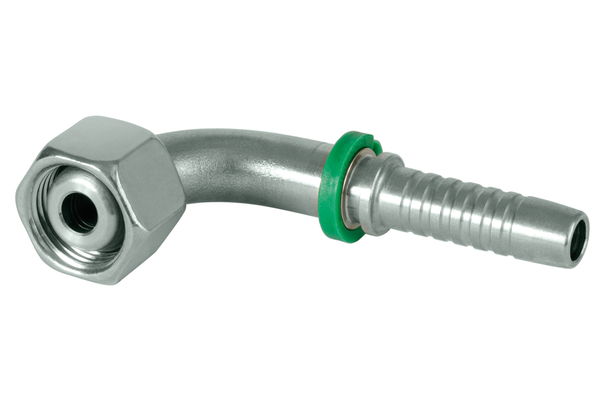

XV30MSF22-90S12
DKL 90° MSF 90°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Sealing cone with union nut light series

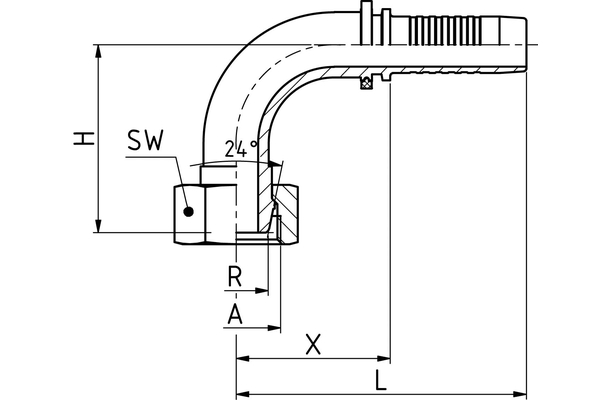

  Connection thread A:	M30x2,0
  Pipe Ø R [mm]:	22
  X [mm]:	52,8
  L1 [mm]:	98,8
  H [mm]:	58,9
  SW1 [mm]:	36
  Type of nut:	Union nut
  Connection name Indunorm:	MSF 90°
  Connection type:	DKL 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
