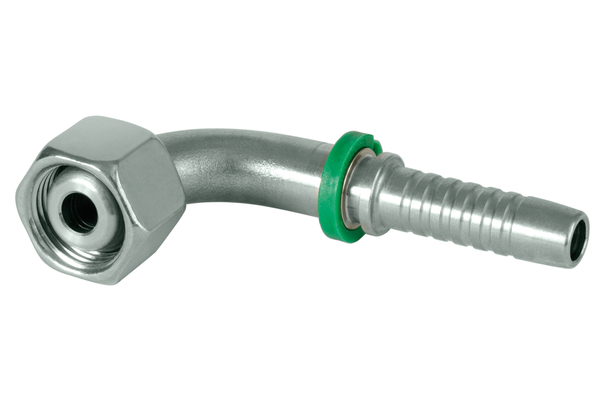

XV22MSF15-90S08
DKL 90° MSF 90°

Product info

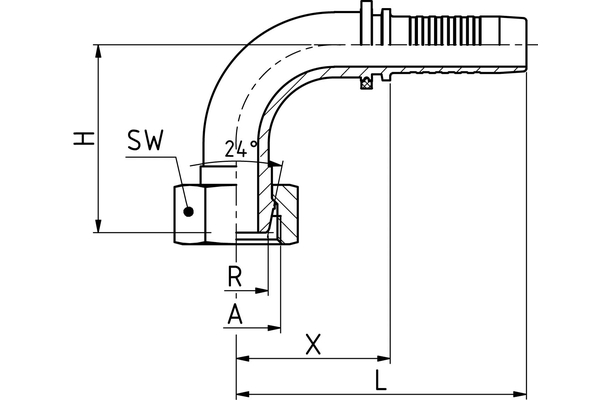

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Sealing cone with union nut light series
  Connection thread A:	M22x1,5
  Pipe Ø R [mm]:	15
  X [mm]:	41,2
  L1 [mm]:	76,5
  H [mm]:	41,0
  SW1 [mm]:	27
  Type of nut:	Union nut
  Connection name Indunorm:	MSF 90°
  Connection type:	DKL 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
