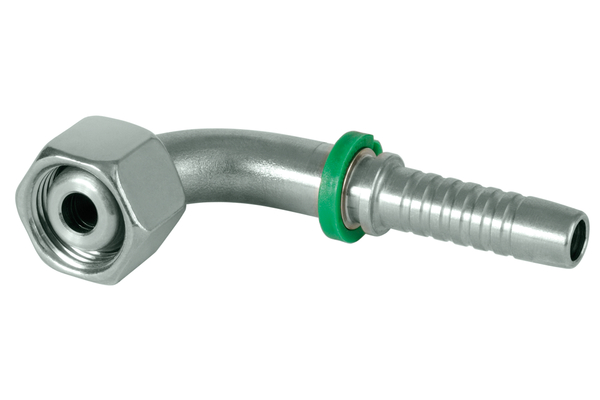

XV26MSF18-90S10
DKL 90° MSF 90°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	Sealing cone with union nut light series
  Connection thread A:	M26x1,5
  Pipe Ø R [mm]:	18

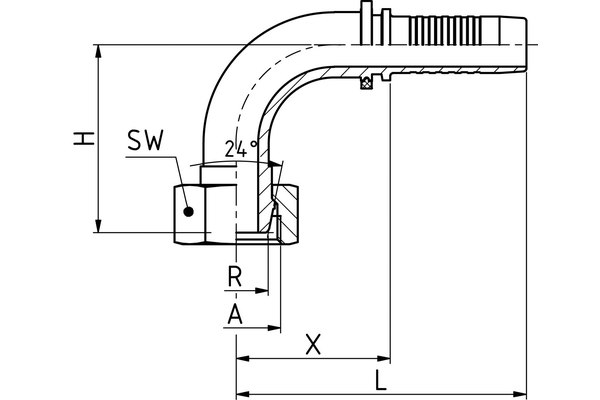

  X [mm]:	45,7
  L1 [mm]:	84,0
  H [mm]:	49,0
  SW1 [mm]:	32
  Type of nut:	Union nut
  Connection name Indunorm:	MSF 90°
  Connection type:	DKL 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
