XV16MSF10-90S06
DKL 90° MSF 90°

Product info

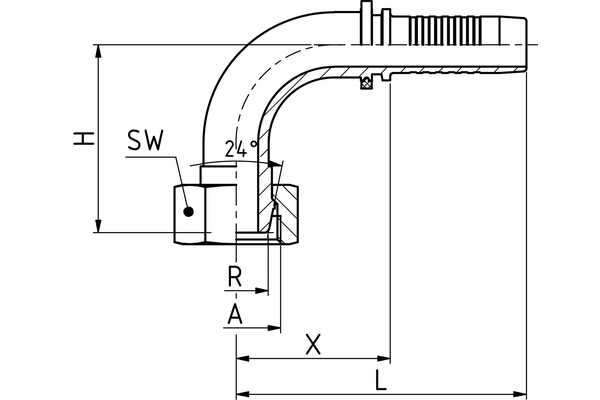

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Sealing cone with union nut light series
  Connection thread A:	M16x1,5
  Pipe Ø R [mm]:	10
  X [mm]:	36,0
  L1 [mm]:	69,5
  H [mm]:	30,0
  SW1 [mm]:	19
  Type of nut:	-
  Connection name Indunorm:	MSF 90°
  Connection type:	DKL 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
