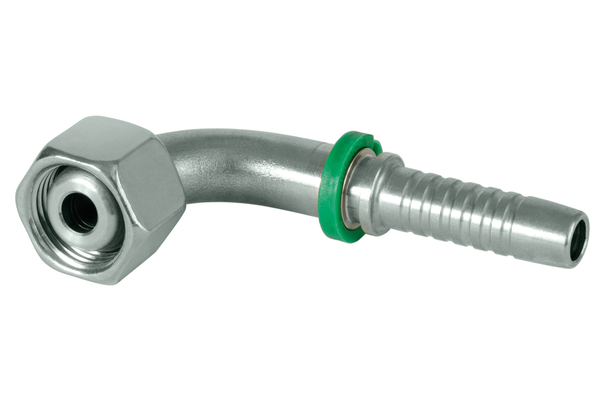

XV18MSF12-90S06
DKL 90° MSF 90°

Product info

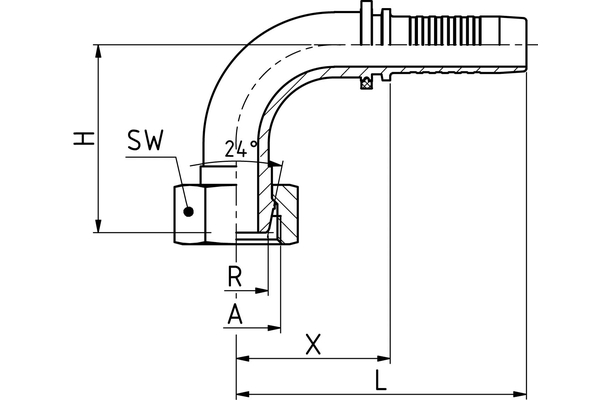

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Sealing cone with union nut light series
  Connection thread A:	M18x1,5
  Pipe Ø R [mm]:	12
  X [mm]:	36,7
  L1 [mm]:	70,0
  H [mm]:	36,0
  SW1 [mm]:	22
  Type of nut:	-
  Connection name Indunorm:	MSF 90°
  Connection type:	DKL 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
