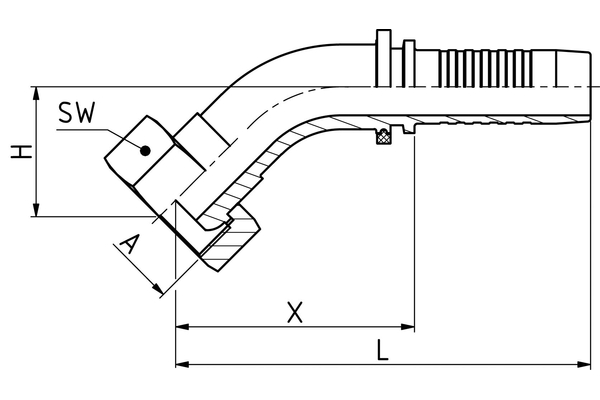

XV30MF45S12
DKM 45° MF 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Universal sealing cone with union nut, metric fine thread

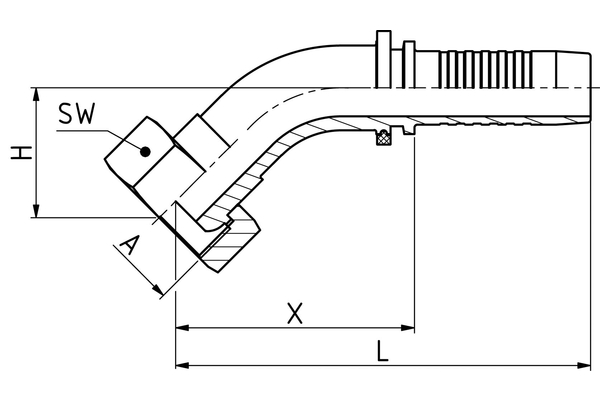

  Connection thread A:	M30x1,5
  Pipe Ø R [mm]:	22
  X [mm]:	68,2
  L1 [mm]:	114,0
  H [mm]:	26,0
  SW1 [mm]:	36
  Type of nut:	union nut
  Connection name Indunorm:	ME 45°
  Connection type:	DKM 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
