DKM 45°

Similar image
Similar image

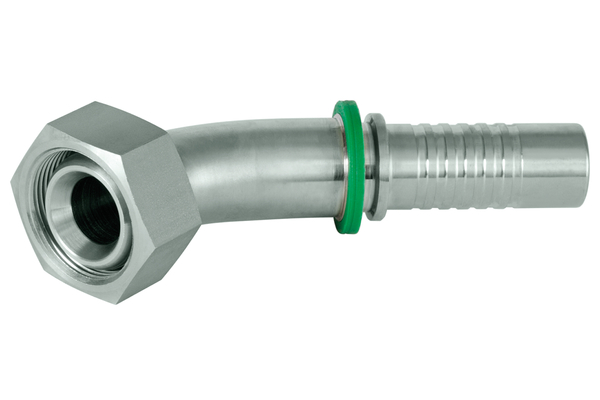

Universal sealing cone with union nut, metric fine thread

To accessories

Detail

Art. No.
XV30MF45S12
%
SALE
XV38MF45S16
%
SALE
XV45MF45S20
%
SALE
DN
19
25
31
Size
12
16
20
Inch
3/4
1
1.1/4
Thread + standard
Universal sealing cone with union nut, metric fine thread
Universal sealing cone with union nut, metric fine thread
Universal sealing cone with union nut, metric fine thread

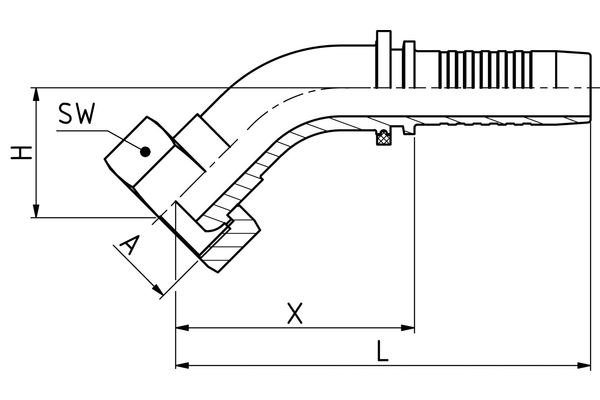

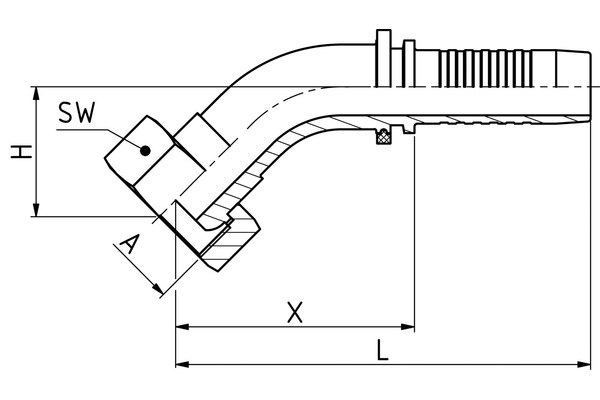

Connection thread A
M30x1,5
M38x1,5
M45x1,5
Pipe Ø R [mm]
22
28
35
X [mm]
68,2
88,5
109,5
L1 [mm]
114,0
143,5
169,0
H [mm]
26,0
32,5
36,0
SW1 [mm]
36
46
50
Type of nut
union nut
union nut
union nut
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: ME 45°
    Connection type: DKM 45°
    Construction form: 45°
    Material: Free cutting steel
    Surface: Cr3
    Type of fittings: Universal series XV
