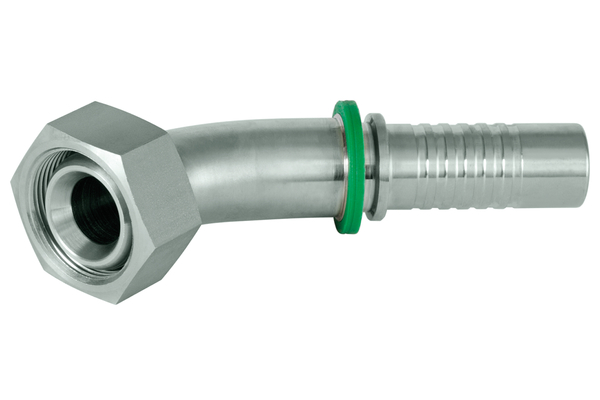

XV45MF45S20
DKM 45° MF 45°

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	Universal sealing cone with union nut, metric fine thread
  Connection thread A:	M45x1,5
  Pipe Ø R [mm]:	35

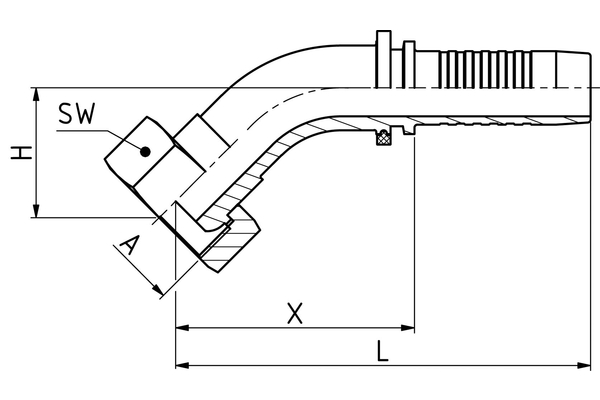

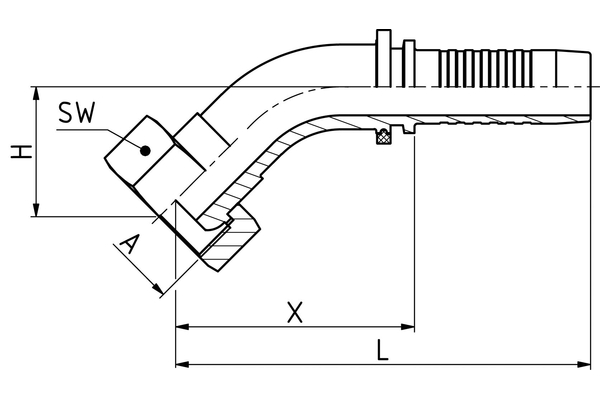

  X [mm]:	109,5
  L1 [mm]:	169,0
  H [mm]:	36,0
  SW1 [mm]:	50
  Type of nut:	union nut
  Connection name Indunorm:	ME 45°
  Connection type:	DKM 45°
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
