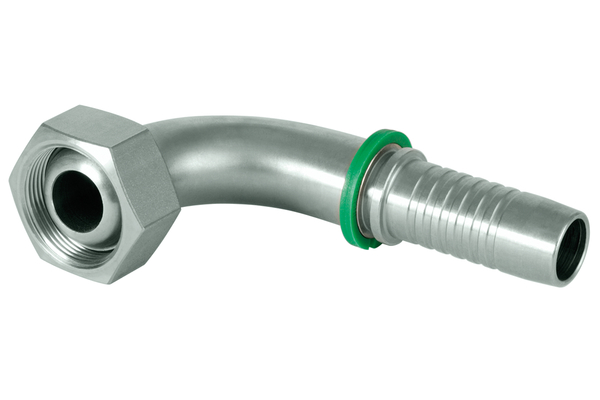

XV30MF90S12
DKM 90° MF 90°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Universal sealing cone with union nut, metric fine thread
  Connection thread A:	M30x1,5
  Pipe Ø R [mm]:	22

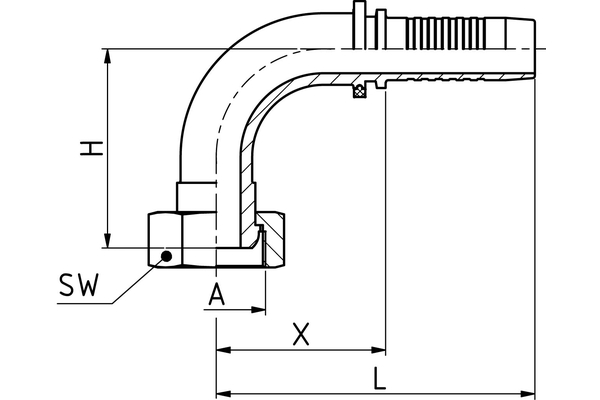

  X [mm]:	60,2
  L1 [mm]:	106,0
  H [mm]:	54,0
  SW1 [mm]:	36
  Type of nut:	union nut
  Connection name Indunorm:	ME 90°
  Connection type:	DKM 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
