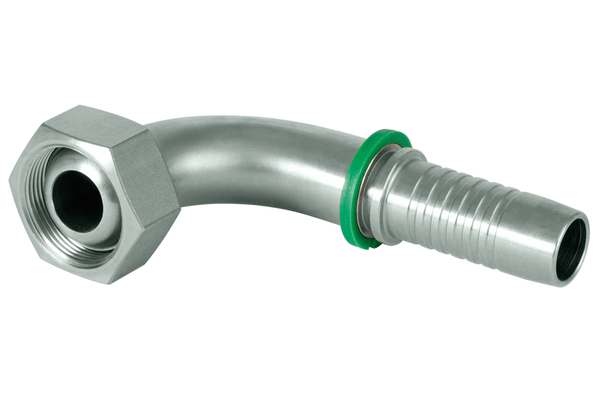

DKM 90°

Similar image
Similar image

Universal sealing cone with union nut, metric fine thread

To accessories

Detail

Art. No.
XV30MF90S12
%
SALE
XV38MF90S16
%
SALE
XV45MF90S20
%
SALE
XV52MF90S24
%
SALE
XV65MF90S32
%
SALE
DN
19
25
31
38
51
Size
12
16
20
24
32
Inch
3/4
1
1.1/4
1.1/2
2
Thread + standard
Universal sealing cone with union nut, metric fine thread
Universal sealing cone with union nut, metric fine thread
Universal sealing cone with union nut, metric fine thread
Universal sealing cone with union nut, metric fine thread
Universal sealing cone with union nut, metric fine thread

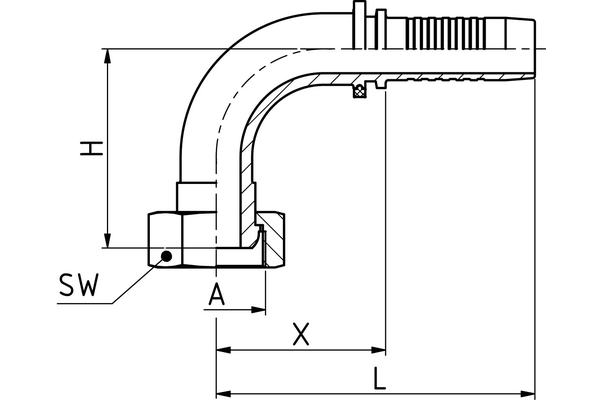

Connection thread A
M30x1,5
M38x1,5
M45x1,5
M52x1,5
M65x2,0
Pipe Ø R [mm]
22
28
35
42
50
X [mm]
60,2
78,0
102,0
112,5
102,4
L1 [mm]
106,0
133,0
162,0
180,0
177,6
H [mm]
54,0
72,0
81,0
108,5
108,6
SW1 [mm]
36
46
50
60
75
Type of nut
union nut
union nut
union nut
union nut
union nut
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: ME 90°
    Connection type: DKM 90°
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Universal series XV
