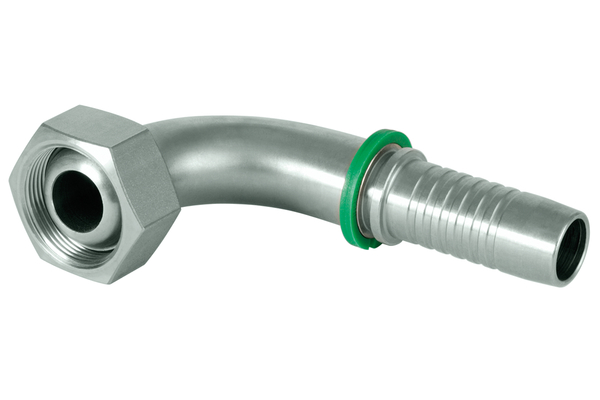

XV52MF90S24
DKM 90° MF 90°

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Thread + standard:	Universal sealing cone with union nut, metric fine thread
  Connection thread A:	M52x1,5
  Pipe Ø R [mm]:	42

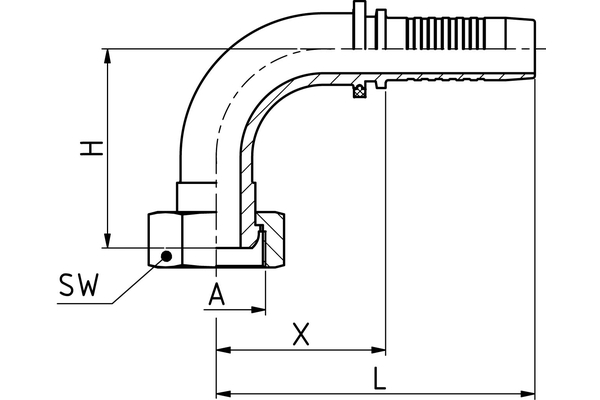

  X [mm]:	112,5
  L1 [mm]:	180,0
  H [mm]:	108,5
  SW1 [mm]:	60
  Type of nut:	union nut
  Connection name Indunorm:	ME 90°
  Connection type:	DKM 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
