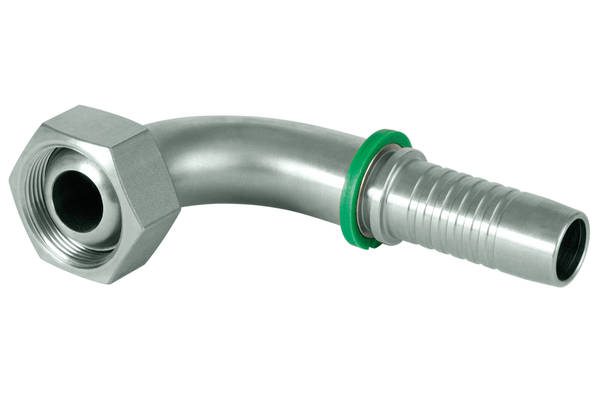

XV65MF90S32
DKM 90° MF 90°

Product info

• Technical data

  DN:	51
  Size:	32
  Inch:	2
  Thread + standard:	Universal sealing cone with union nut, metric fine thread
  Connection thread A:	M65x2,0
  Pipe Ø R [mm]:	50

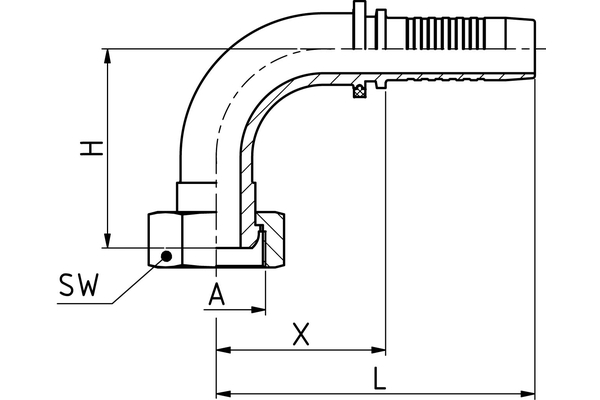

  X [mm]:	102,4
  L1 [mm]:	177,6
  H [mm]:	108,6
  SW1 [mm]:	75
  Type of nut:	union nut
  Connection name Indunorm:	ME 90°
  Connection type:	DKM 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
