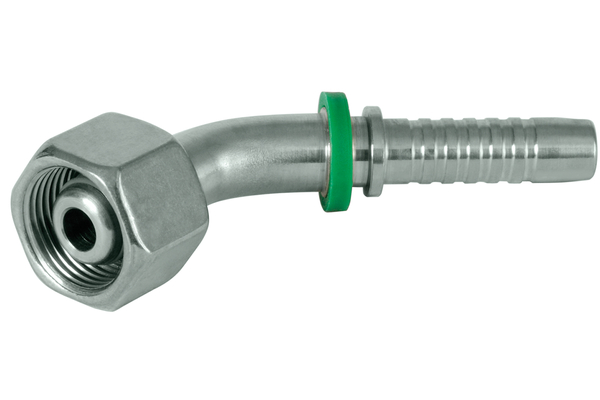

XV24MSOF16-45S10
DKOS 45° MSOF 45°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series

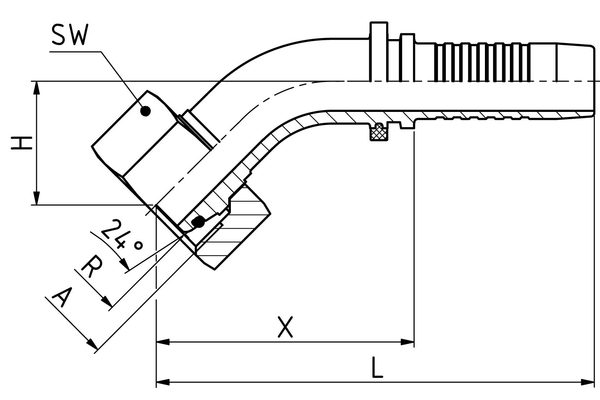

  Connection thread A:	M24x1,5
  Pipe Ø R [mm]:	16
  X [mm]:	57,0
  L1 [mm]:	95,5
  H [mm]:	23,5
  Outer diameter O-ring [mm]:	14
  Height O-ring [mm]:	2,0
  SW1 [mm]:	30
  Type of nut:	union nut
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOS 45°
  Construction form:	45°
  Material:	Free cutting steel
  Material O-Ring:	NBR 70
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
