DKOS 45°

Similar image
Similar image

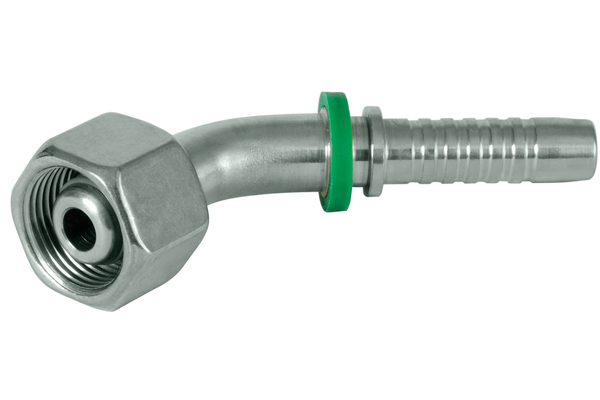

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut, heavy series

To accessories

Detail

Art. No.
XV16MSOF08-45S03
%
SALE
XV14MSOF06-45S04
%
SALE
XV16MSOF08-45S04
%
SALE
XV18MSOF10-45S04
%
SALE
XV20MSOF12-45S04
%
SALE
XV18MSOF10-45S05
%
SALE
XV20MSOF12-45S05
%
SALE
XV18MSOF10-45S06
%
SALE
XV20MSOF12-45S06
%
SALE
XV22MSOF14-45S06
%
SALE
XV24MSOF16-45S06
%
SALE
XV24MSOF16-45S08
%
SALE
XV24MSOF16-45S10
%
SALE
XV30MSOF20-45S10
%
SALE
XV36MSOF25-45S10
%
SALE
XV30MSOF20-45S12
%
SALE
XV36MSOF25-45S12
%
SALE
XV36MSOF25-45S12-41
%
SALE
XV42MSOF30-45S12
%
SALE
XV36MSOF25-45S16
%
SALE
XV42MSOF30-45S16
%
SALE
XV52MSOF38-45S16
%
SALE
XV42MSOF30-45S20
%
SALE
XV52MSOF38-45S20
%
SALE
DN
05
06
06
06
06
08
08
10
10
10
10
12
16
16
16
19
19
19
19
25
25
25
31
31
Size
03
04
04
04
04
05
05
06
06
06
06
08
10
10
10
12
12
12
12
16
16
16
20
20
Inch
3/16
1/4
1/4
1/4
1/4
5/16
5/16
3/8
3/8
3/8
3/8
1/2
5/8
5/8
5/8
3/4
3/4
3/4
3/4
1
1
1
1.1/4
1.1/4
Thread + standard
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Connection thread A
M16x1,5
M14x1,5
M16x1,5
M18x1,5
M20x1,5
M18x1,5
M20x1,5
M18x1,5
M20x1,5
M22x1,5
M24x1,5
M24x1,5
M24x1,5
M30x2
M36x2
M30x2
M36x2
M36x2
M42x2
M36x2
M42x2
M52x2
M42x2
M52x2
Pipe Ø R [mm]
8
6
8
10
12
10
12
10
12
14
16
16
16
20
25
20
25
25
30
25
30
38
30
38
X [mm]
34,0
43,0
36,0
38,5
44,5
38,5
40,0
44,0
41,5
46,0
58,5
50,5
57,0
56,5
74,5
71,5
66,0
66,0
75,0
75,5
83,0
86,0
86,5
101,5

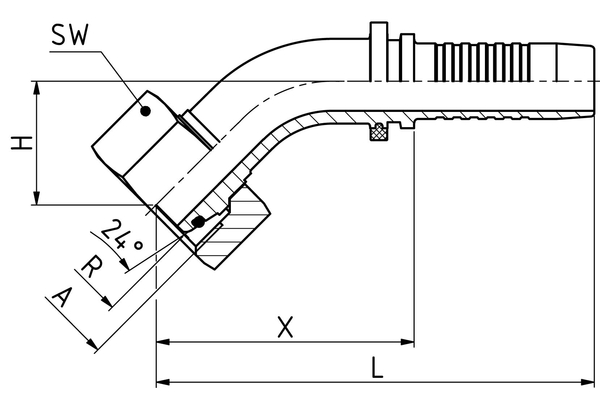

L1 [mm]
58,5
73,0
66,0
68,5
74,5
68,5
70,0
77,5
74,5
79,0
92,0
86,0
95,5
95,0
113,0
117,5
112,5
112,5
121,0
131,0
138,0
141,0
146,5
161,5
H [mm]
14,0
17,0
16,0
18,5
19,0
18,5
18,0
19,0
17,5
20,0
24,0
24,0
23,5
25,0
32,0
30,5
29,0
29,0
32,0
32,0
36,5
37,5
35,5
41,5
Outer diameter O-ring [mm]
7
5
7
9
11
9
11
9
11
12
14
14
14
17,5
22
17,5
22
22
27
22
36
36
27
36
Height O-ring [mm]
1,5
1,5
1,5
1,5
1,5
1,5
1,5
1,5
1,5
2,0
2,0
2,0
2,0
2,5
2,5
2,5
2,5
2,5
2,5
2,5
2,5
2,5
2,5
2,5
SW1 [mm]
19
17
19
22
24
22
24
22
24
27
30
30
30
36
41
36
46
41
50
41
50
60
50
60
Type of nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSOF 45°
    Connection type: DKOS 45°
    Construction form: 45°
    Material: Free cutting steel
    Material O-Ring: NBR 70
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Universal series XV

Practical tip

At higher temperatures, the NBR O-ring can be replaced easily by a Viton O-ring, see XV-SET OR Rohr..L / SV.
