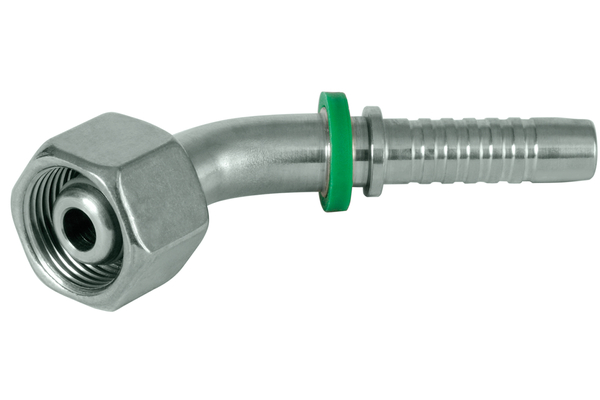

XV42MSOF30-45S12
DKOS 45° MSOF 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series

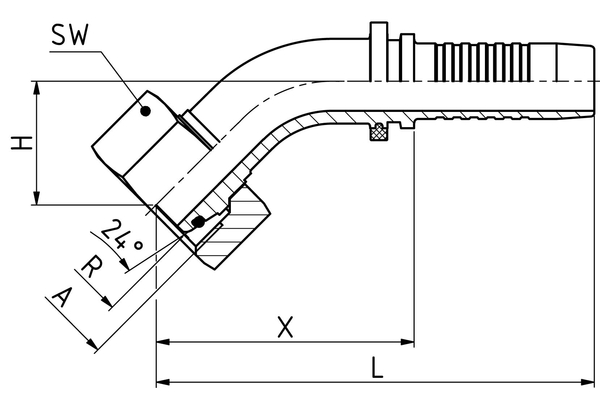

  Connection thread A:	M42x2
  Pipe Ø R [mm]:	30
  X [mm]:	75,0
  L1 [mm]:	121,0
  H [mm]:	32,0
  Outer diameter O-ring [mm]:	27
  Height O-ring [mm]:	2,5
  SW1 [mm]:	50
  Type of nut:	union nut
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOS 45°
  Construction form:	45°
  Material:	Free cutting steel
  Material O-Ring:	NBR 70
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
