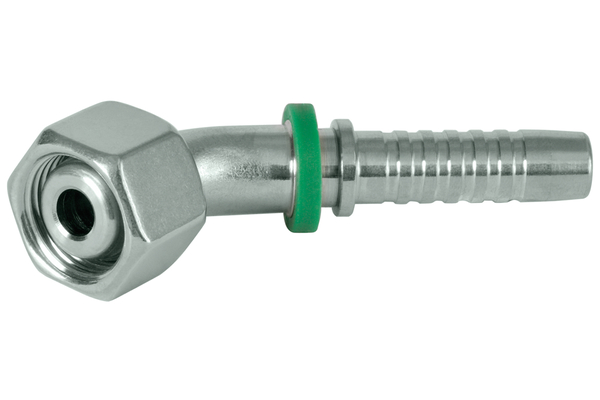

XV18MSF10-45S04
DKS 45° MSF 45°

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Sealing cone with union nut heavy series
  Connection thread A:	M18x1,5

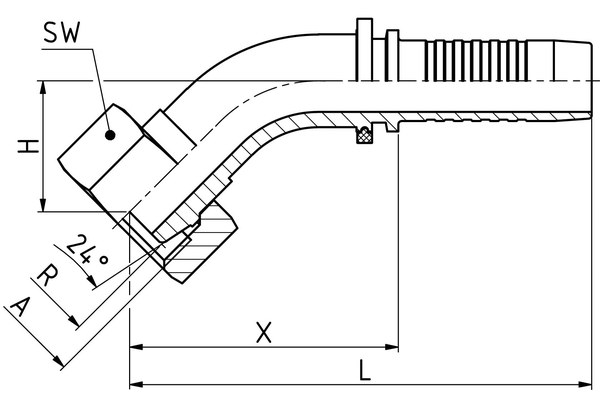

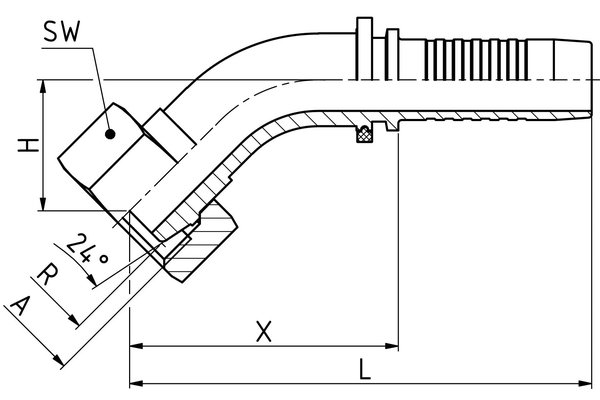

  Pipe Ø R [mm]:	10
  X [mm]:	44,3
  L1 [mm]:	74,5
  H [mm]:	21,8
  SW1 [mm]:	22
  Connection name Indunorm:	MSF 45°
  Connection type:	DKS 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
