DKS 45°

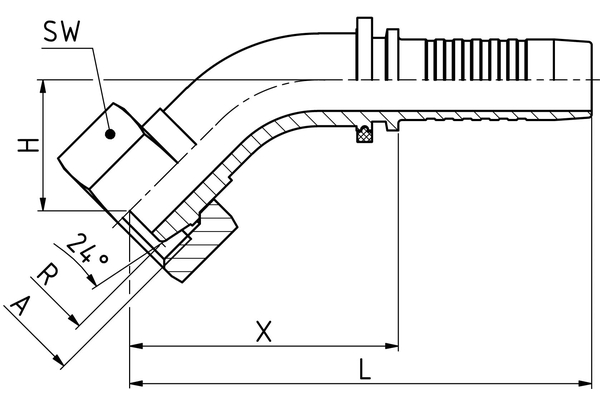

Similar image
Similar image

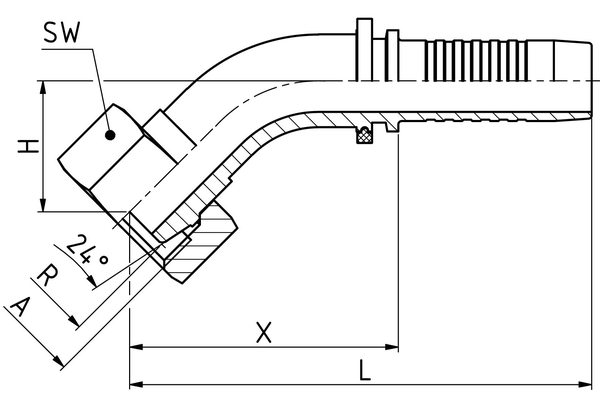

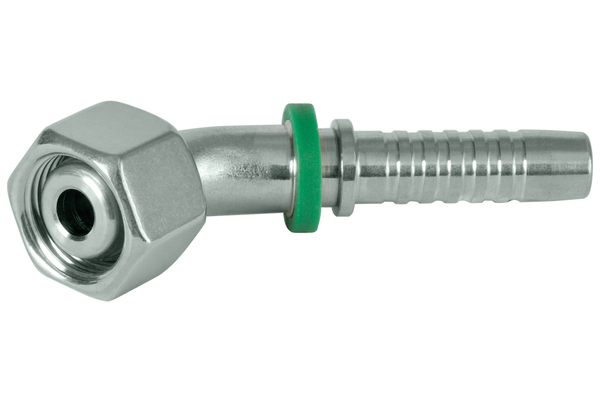

Sealing cone with union nut, heavy series

To accessories

Detail

Art. No.
XV16MSF08-45S04
%
SALE
XV18MSF10-45S04
%
SALE
XV20MSF12-45S05
%
SALE
XV20MSF12-45S06
%
SALE
XV24MSF16-45S08
%
SALE
XV36MSF25-45S12
%
SALE
DN
06
06
08
10
12
19
Size
04
04
05
06
08
12
Inch
1/4
1/4
5/16
3/8
1/2
3/4
Thread + standard
Sealing cone with union nut heavy series
Sealing cone with union nut heavy series
Sealing cone with union nut heavy series
Sealing cone with union nut heavy series
Sealing cone with union nut heavy series
Sealing cone with union nut heavy series
Connection thread A
M16x1,5
M18x1,5
M20x1,5
M20x1,5
M24x1,5
M36x2,0
Pipe Ø R [mm]
8
10
12
12
16
25
X [mm]
44,4
44,3
43,3
46,3
46,0
74,0
L1 [mm]
74,6
74,5
73,5
79,8
81,5
120,0
H [mm]
20,4
21,8
17,5
21,0
19,8
30,4
SW1 [mm]
19
22
24
24
30
46
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSF 45°
    Connection type: DKS 45°
    Construction form: 45°
    Material: Free cutting steel
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV

Benefit

Well-suited for high temperatures and for corrosive media duet to metallic sealing.
